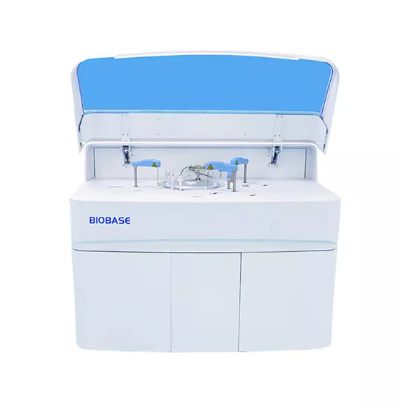

Auto Chemistry Analyzer BK-1200
Auto Chemistry Analyzer BK-1200
Couldn't load pickup availability
It is used to quantitatively analyze the chemistry of human serum, plasma, urine, cerebrospinal fluid and other samples. Do not use for other purposes.
Features:
- 150 Sample positions.
- 160 Reaction cuvettes.
- 180 Refrigerated reagent positions.
- Optical filter/fiber bragg grating selectable.
- 800 Tests per hour 1200 Tests with ISE module.
- Built-in sample barcode system optional.
- Probe with anti-collision function, liquid level detection function.
Models:
|
Model |
BK-1200 |
|
|
Overall |
Throughput |
800Tests/hour, 1200Tests/hour with ISE(Optional) |
|
Performance |
Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
|
Certificates |
CE, FDA, ISO9001, ISO14001, ISO13485 |
|
|
Sample & Reagent System |
Sample Positions |
150sample positions |
|
Reagent Position |
180reagent positions |
|
|
Sample Volume |
1-70μL |
|
|
Reagent Volume |
10-350μL |
|
|
Probe |
Teflon coating, with anti-collision function,Liquid level detection function |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
Refrigerated tray with independent switch |
|
|
Reaction System |
Temperature Control |
Water bath37±0.1℃, real-time monitoring |
|
Cuvettes |
160reusable cuvettes, optical length 6mm |
|
|
Mixer Probe |
Independent stirring |
|
|
Washing |
Automatic cuvettes washing |
|
|
STAT function |
YES |
|
|
Optical System |
Light Source |
12V/20W halogen lamp/fiber bragg grating optional |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
12 wavelength from 340~800nm |
|
|
Absorbance |
0~3.5Abs |
|
|
Calibration & QC |
Calibration |
Linear:K factor, 1-point ,2-point and multipoint linear Non-Linear:Spline,Polygon, Index, Ogarithm, Logit-4P, Logit-5P |
|
Quality Control |
Real-time QC, Westgard multi rule, Cumulative Sum Check,Twin Plot(2D), Daily QC, Monthly QC |
|
|
Data Management |
Software |
Windows 7/8/10 , 32or 64bit |
|
LIS System |
Bi-direction,support HL7 protocol |
|
|
Interface |
LAN port access |
|
|
Printer |
External,multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V±10% 50/60Hz, 110V±10% 60Hz, 1500W |
|
Temperature |
15~30℃（±2℃） |
|
|
Water Consumption |
Deionized water: <25L/H |
|
|
Humidity |
40~85% |
|
|
Size & Weight |
External Size (W*D*H) |
1360*795*1155mm |
|
Net Weight |
290kg |
|
|
Package Size (W*D*H) |
1729*969*1435mm |
|
|
Gross Weight |
400kg |
|
