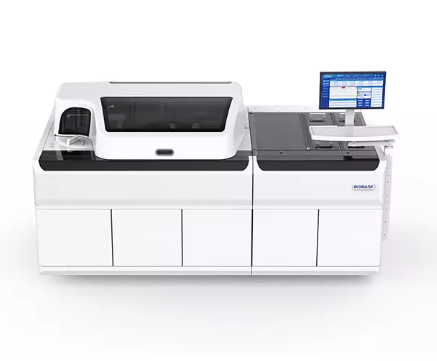

Automatic Chemistry Analyzer

Automatic Chemistry Analyzer

Regular price $0.00
Regular price Sale price $0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

Features:

1. 300 Sample positions.

2. 432 Reaction cuvettes.

3. 250 Refrigerated reagent positions.

4. Double focus, double aperture, holographic concave grating.

5.2000 Tests per hour, ISE is optional.

6. Built-in sample barcode system.

7. Probe with anti-collision function, liquid level detection function.


Model:

Model

BK-2000

Overall
Performance

Throughput

2000Tests/hour, ISE(Optional)

Analysis Method

End-point, Fixed-time, Rate(Kinetic), Turbidimetry

Certificates

CE, FDA, ISO9001, ISO14001, ISO13485

Sample & Reagent System

Sample Positions

300sample positions

Reagent Position

250 reagent positions

Sample Volume

1-35μL

Reagent Volume

1-350μL

Probe

Teflon coating, with anti-collision function, Liquid level detection function

Probe Washing

Automatic washing interior and exterior

Reagent Cooling

Refrigerated tray with independent switch

Reaction System

Temperature Control

Water bath37±0.1℃, real-time monitoring

Cuvettes

432 reusable cuvettes, optical length 5.5mm

Mixer Probe

Independent stirring

Washing

Automatic cuvettes washing

STAT function

YES

Optical System

Light Source

12V/50W halogen lamp/ holographic concave grating

Spectrophotometry

Post-spectral spectrophotometry

Wavelength

16 wavelength from 340~850nm

Absorbance

0~3.5Abs

Calibration & QC

Calibration

Linear: K factor, 1-point ,2-point and multipoint linear

Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P

Quality Control

Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D)

Data Management

Software

Windows 7/8/10 , 32or 64bit

LIS System

Bi-direction, support HL7 protocol

Interface

LAN port access

Printer

External, multiple reporting mode available

Working Conditions

Power Supply

AC220V±10% 50/60Hz(Standard), 110V±10% 60Hz(Optional), 3000W

Temperature

15~30℃(±2℃)

Water Consumption

Deionized water:  80L/H

Humidity

40~85%

Size & Weight

External Size (W*D*H)

Scheduling module: 972*1225*1495mm;

Analysis module:1505*1225*1245mm

Net Weight

Scheduling module: 160kg;

Analysis module:500kg

Package Size (W*D*H)

Scheduling module:1410*1350*1170mm;

Analysis module:1685*1410*1460mm

Gross Weight

Scheduling module: 235kg;

Analysis module:600kg
