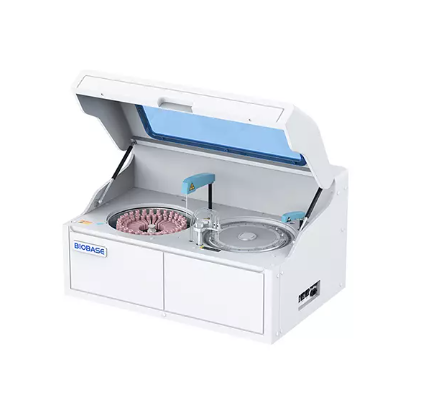

300T/H Automatic Chemistry Analyzer
300T/H Automatic Chemistry Analyzer
Couldn't load pickup availability
bioFeatures:
- 49 sample positions
- 56 reagent positions.
- 120 reaction cuvettes.
- 300 tests per hour.
- Probe with anti-collision function, liquid level dectection function.
Model
|
Model |
BK-310 | |
|
Overall |
Throughput |
300Tests/hour, ISE(Optional) |
|
Analysis Method |
End-point, Fixed-time, Rate(Kinetic), Turbidimetry |
|
|
Certificates |
CE, FDA, ISO9001, ISO14001, ISO13485 |
|
|
System |
Optional open or close system, continuous working for 24 hours |
|
|
Sample & Reagent System |
Sample Positions |
49sample positions |
|
Reagent Position |
56 reagent positions |
|
|
Sample Volume |
2-70μL |
|
|
Reagent Volume |
20-350μL |
|
|
Probe |
With anti-collision function, liquid level detection function |
|
|
Probe Washing |
Automatic washing interior and exterior |
|
|
Reagent Cooling |
2~12℃ for 24 hours |
|
|
Reaction System |
Temperature Control |
Water bath37±0.2℃, real-time monitoring |
|
Cuvettes |
||
|
Mixer Probe |
Independent stirring， automatic frequency conversion |
|
|
Washing |
Automatic cuvettes washing |
|
|
Optical System |
Light Source |
Halogen lamp, water-cooling |
|
Spectrophotometry |
Post-spectral spectrophotometry |
|
|
Wavelength |
340~700nm |
|
|
Absorbance |
0~3.0Abs |
|
|
Calibration & QC |
Calibration |
Linear: K factor, 1-point,2-point and multipoint linear Non-Linear: Spline, Polygon,Index,Ogarithm, Logit-4P, Logit-5P |
|
Quality Control |
Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D) |
|
|
Data Management |
Software |
Windows 7/8/10, 32or 64bit |
|
LIS System |
Bi-direction, support HL7 protocol |
|
|
Interface |
LAN port access |
|
|
Printer |
External, multiple reporting mode available |
|
|
Working Conditions |
Power Supply |
AC220V±10%, 50/60Hz(Standard), 110V±10% 60Hz(Optional), 350VA |
|
Temperature |
15～30℃（±2℃） |
|
|
Water Consumption |
Deionized water＜5L/h |
|
|
Humidity |
40~85% |
|
|
Size & Weight |
External Size (W*D*H) |
873*585*500mm |
|
Net Weight |
80kg |
|
|
Package Size (W*D*H) |
1130*735*1040mm |
|
|
Gross Weight |
125kg |
|
