Model
|

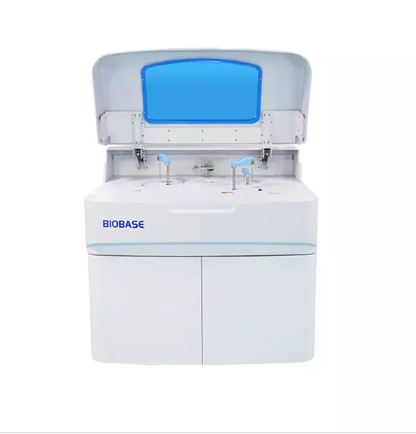

BK-400
|
|
Overall
Performance
|
Throughput
|
400 Test/hour
|
|
Analysis Method
|
End-point, Fixed-time, Rate(Kinetic), Turbidimetry
|
|
Certification
|
CE, FDA, ISO9001, ISO14001, ISO13485
|
|
Sample & Reagent System
|
Sample Positions
|
60 or 90 sample positions, built-in barcode system available
|
|
Reagent Positions
|
90 refrigerated reagent positions
|
|
Sample Volume
|
1-70μL
|
|
Reagent Volume
|
10-350μL
|
|
Probe
|
Teflon coating, with anti-collision function,liquid level detection function
|
|
Probe Washing
|
Automatic washing interior and exterior
|
|
Reagent Cooling
|
2~8℃
|
|
Reaction System
|
Temperature Control
|
37±0.1℃, real-time monitoring
|
|
Cuvettes
|
120 reusable cuvettes, optical length 6mm
|
|
Mixer Probe
|
Independent stirring
|
|
Washing
|
Automatic cuvettes washing
|
|
STAT Function
|
YES
|
|
Optical System
|
Light Source
|
12V/30W halogen-tungsten lamp
|
|
Spectrophotometry
|
Post-spectral spectrophotometry
|
|
Wavelength
|
340, 405, 450, 480, 505, 546, 570, 600, 630, 700, 750, 800nm
|
|
Absorbance
|
0~3.5Abs
|
|
Calibration & QC
|
Calibration
|
Linear: K factor, 1-point, 2-point and multipoint linear
Non-Linear: Spline, Polygon, Index, Ogarithm, Logit-4P, Logit-5P
|
|
|
Quality Control
|
Real-time QC, Westgard multi rule, Cumulative Sum Check, Twin Plot(2D), Daily QC, Monthly QC
|
|
Data Management
|
Software
|
Windows 7/8/10, 32 or 64bit
|
|
LIS System
|
Bi-direction, support HL7 protocol
|
|
Interface
|
LAN port access
|
|
Printer
|
External, multiple reporting mode available
|
|
Working Conditions
|
Power Supply
|
AC220V±10%, 50/60Hz; 110V±10%, 60Hz; 500W
|
|
Temperature
|
15～30℃
|
|
Water Consumption
|
Deionized water: <12 L/H
|
|
Humidity
|
40-85%
|
|
Size & Weight
|
External Size (W*D*H)
|
1170*775*1145mm
|
|
Net Weight
|
190kg
|
|
Package Size (W*D*H)
|
1348*928*1377mm
|
|
Gross Weight
|
257kg
|
