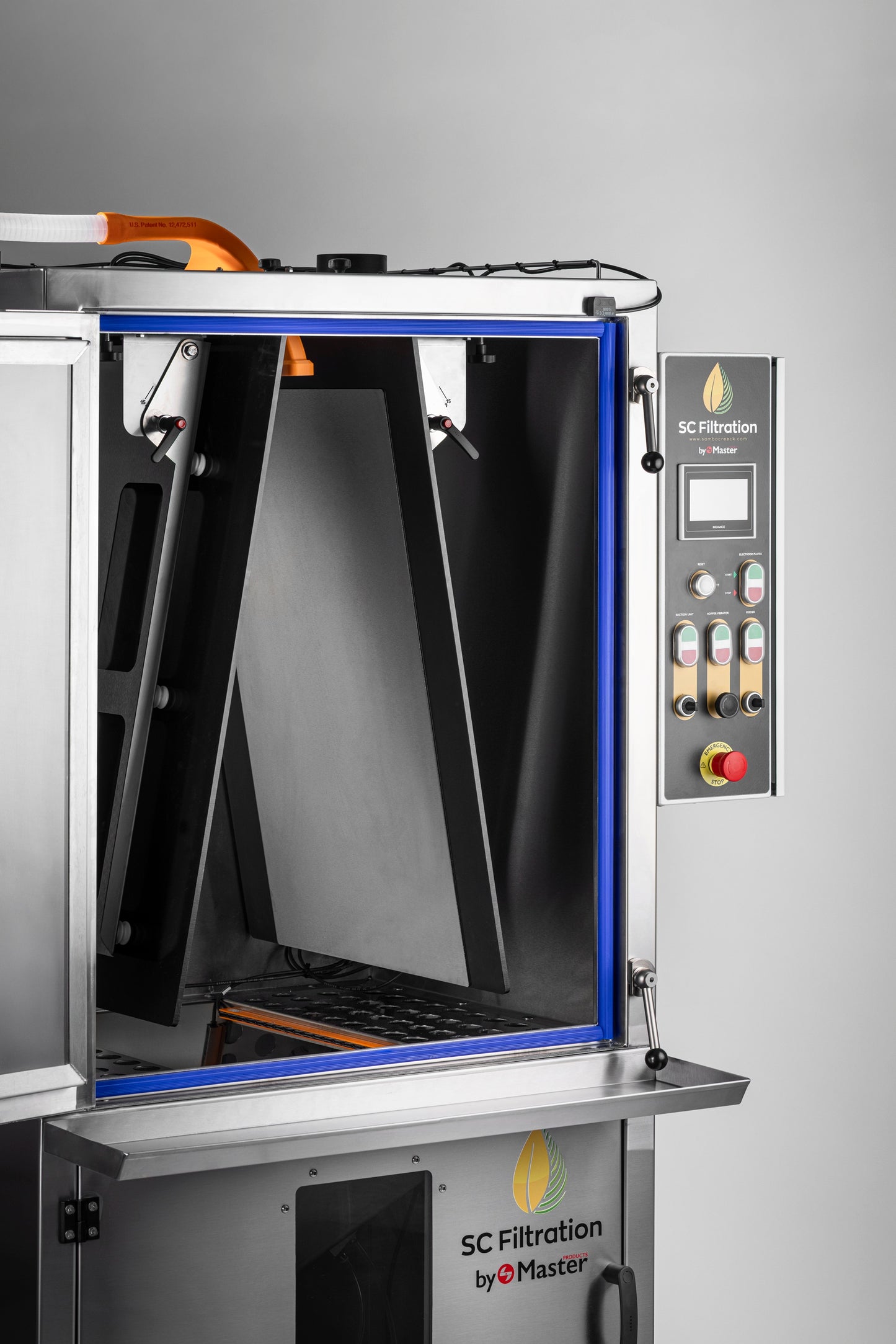

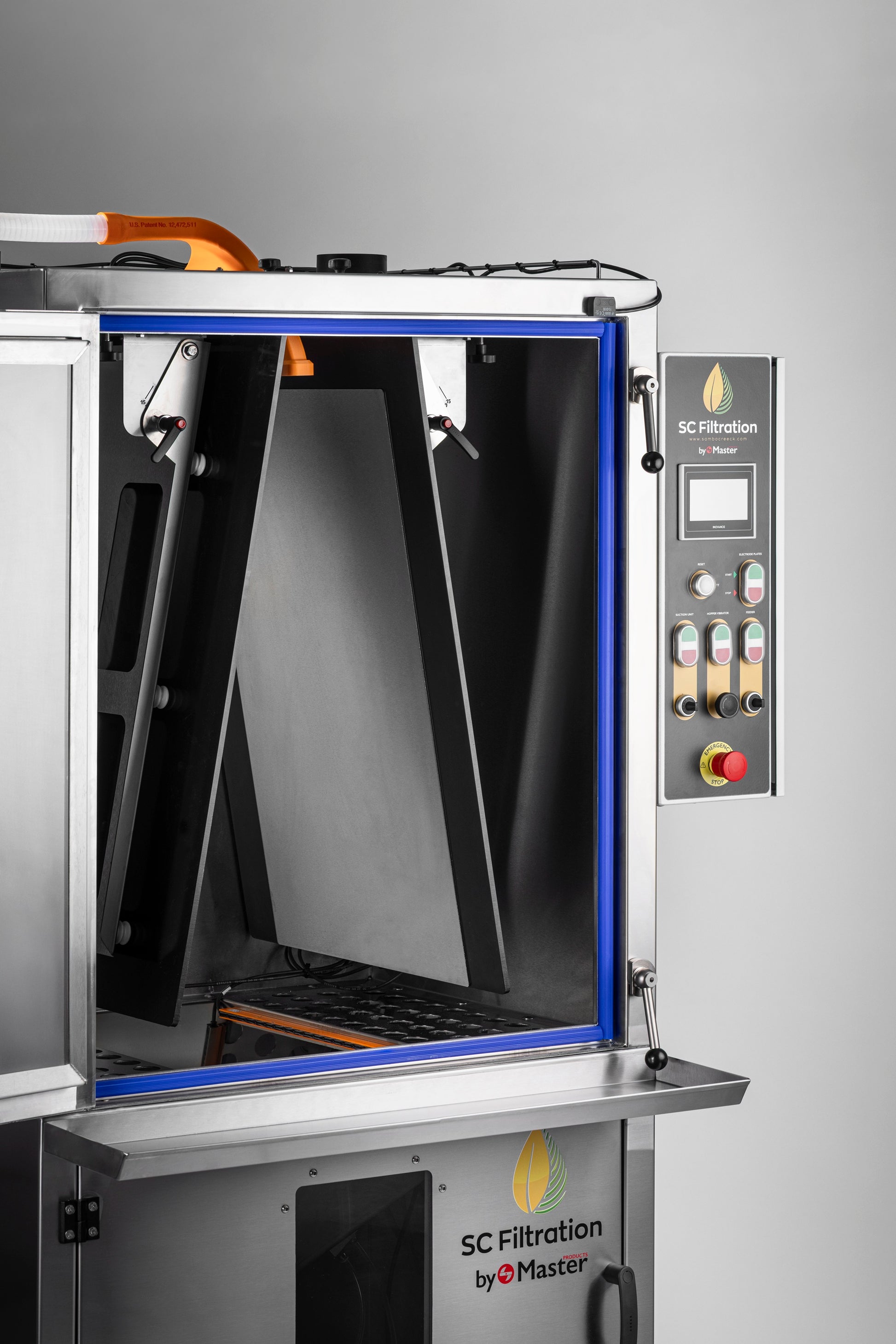

Electrostatic Separator V2

Static electricity is used to separate trichome heads from contaminants such as stalks and other contaminants from powdered biomass.

Schedule a call to discuss. Click here.

What it does well:

Isolates Trichome Heads from contaminants such as plant particles, dirt, pistils and trichome stalks.

Advantages:

• Spent biomass can be reprocessed via solvent extraction.
• No chemicals or inputs used. Only compressed air and electricity.

• Semi automated system.
• Low labor requirements.
• Low power consumption.
• Small footprint.
• Does not require highly specialized area or environment.
• Method may be eligible for energy credits in some jurisdictions.

Differences from V1.x

• Food Grade Stainless Steel Construction

• Advanced Dust Management System
• Certified German-Made Power Supplies
• Keyence Air Flow Sensor and Regulator
• Integrated Control Panel
• Integrated Safety Sensors

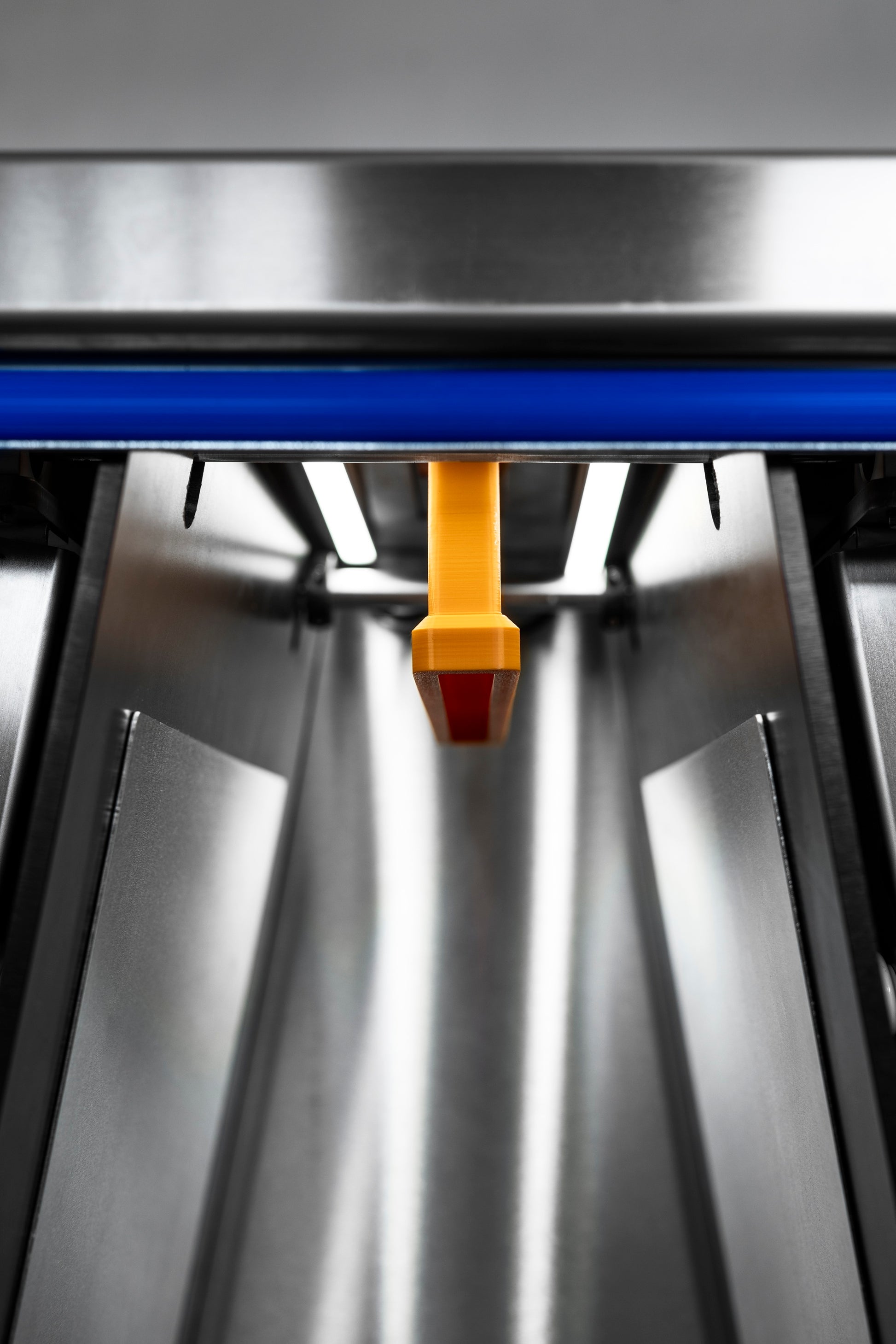

• Advanced Anti-Clumping Static Discharge Electrodes

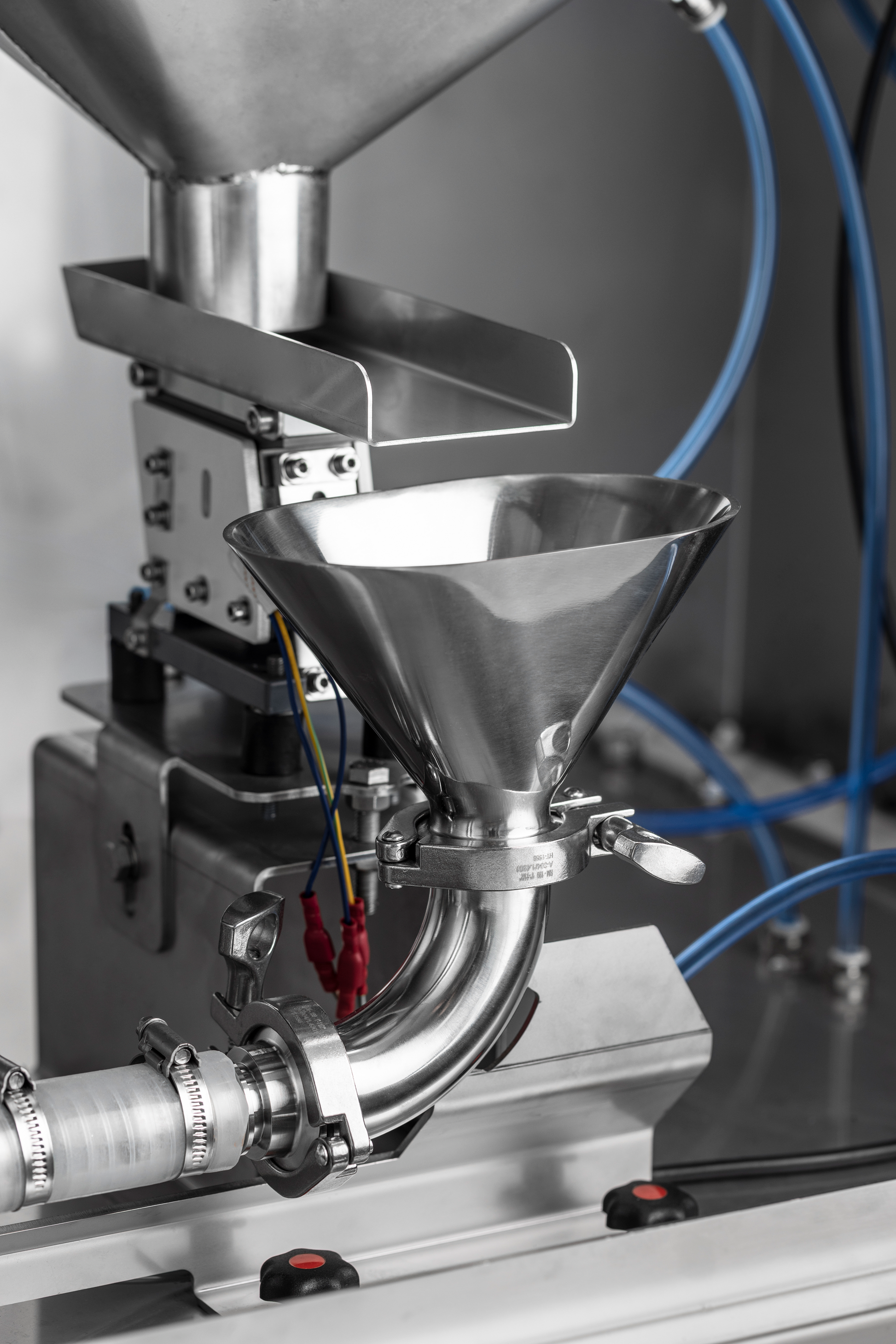

• Anti Clog - Vibrating Hoppers
• Higher Capacity Device

Optional Features:

• Conveyor Belt for continuous collection

• EUGMP/cGMP Compliance Package

Specifications:

• Stainless Steel Construction
• 100-230VAC 50-60hz 5 Amps
• Dry Compressed air required (Air Compressor Not Included). 8 CFM @ 100 PSI
• Weight: 820 Lbs
• Dimensions: 56" x 15" x 65"
• Processing Capacity: 400-2,000g finished product per hour
• Power Supplies Certified UK CA, CE, GS, NRTL, UL
• Patent Pending: Unauthorized use of this product may result in legal action upon patent issuance.

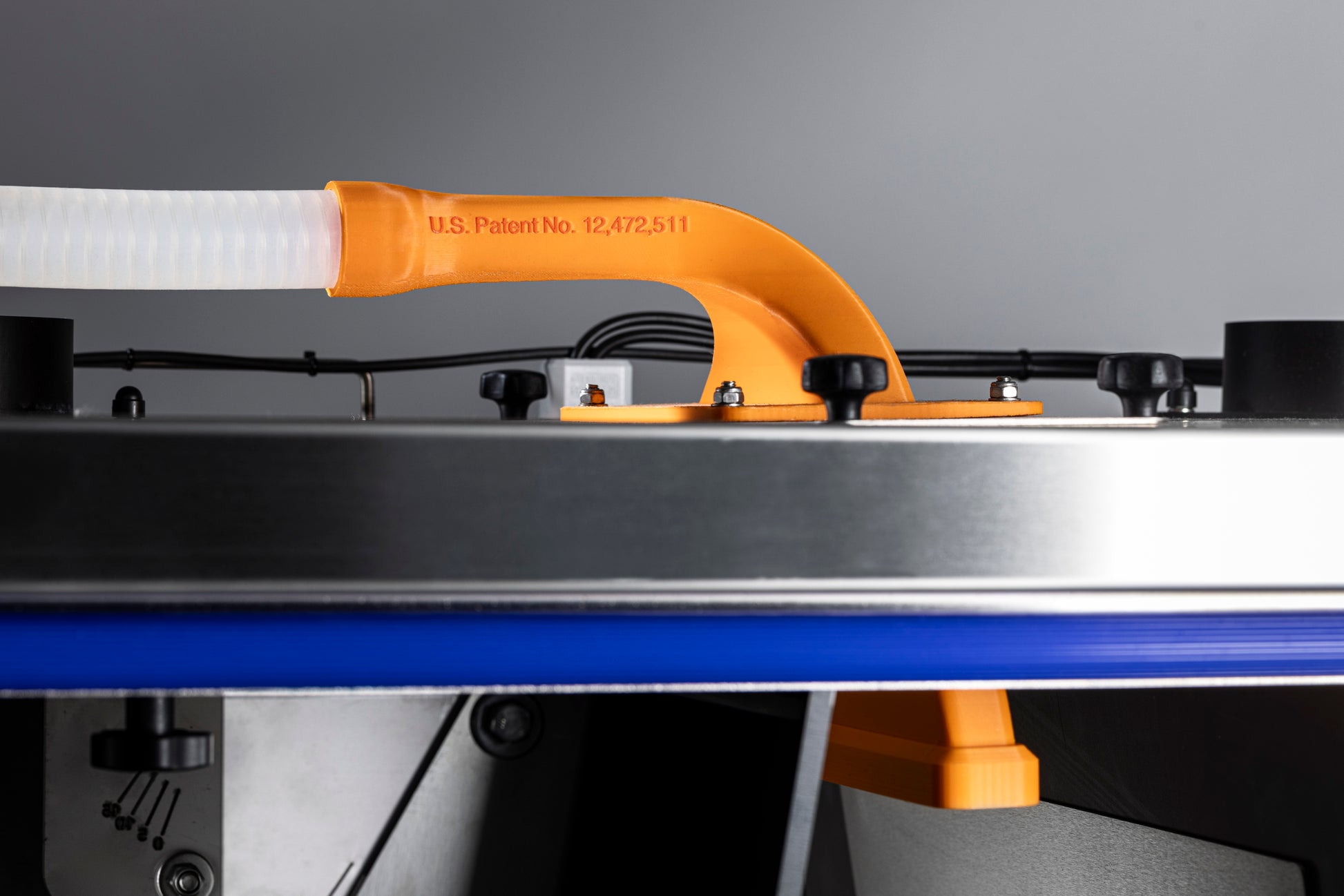

Protected by U.S. Patent No. 12,472,511
Patents Pending in the U.S. and Abroad

Documentation

Download Plasmastatic V2 Brochure (PDF)
