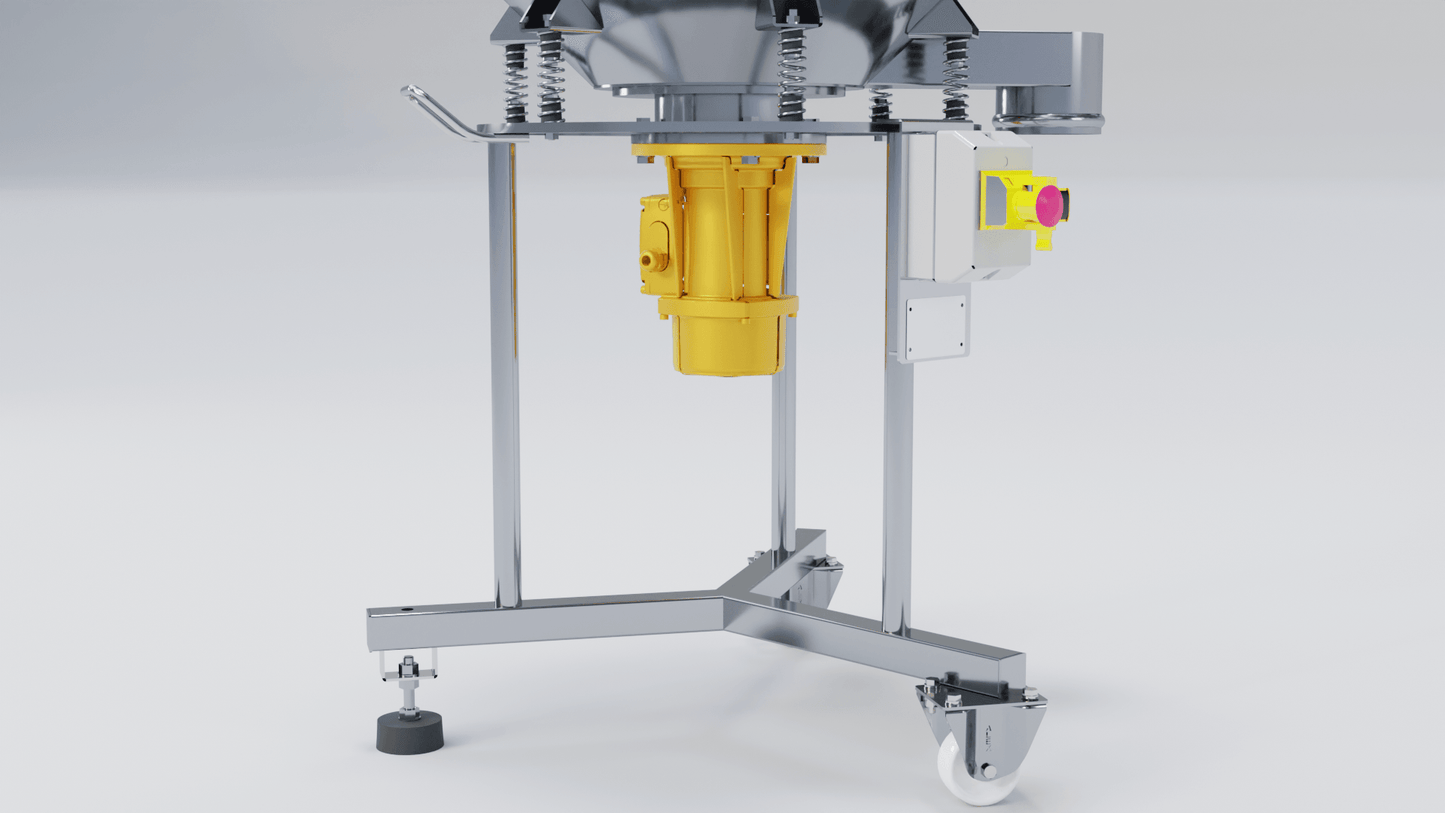

Magna Agitatore Mini - Vibrating Screen System

Have a solventless extraction machine but no reliable sieve solution? Look no further than our Rotary Vibrating Screen system.

Our sieve will help you optimize your trichome sieving needs and allow continuous extraction, improving quality and efficiency.

Our sieving solution can be integrated into any extraction system, not just the Mesclatore.

As always, our systems are easy to use, inexpensive to operate, and the least capital-intensive solutions at scale.

Sieving System Only. Agitator not included.

Where it excels:

• Screening Botanical Trichomes or any particle.

Features:

• Multideck sieves.
• Screen sizes are customizable.
• Filter Trolley with Integrated Pump
• Hash Pump

Advantages:

• Allows continuous operation, and eliminates the need to stop to filter.
• Improves product quality by preventing damage in agitation.
• Labor savings - one operator needed
• Easy to clean and disassemble
• Sort 2 particle sizes
• Large filtering capacity

Optional Features:

• Electro Polished to ASTM B912
• Mobile Trolley for Pump
• Pulsation Damper for Pump

System Includes:

• Circular Vibrating Sieve Device
• 400mm Filter Trolley with integrated pump
• Trichome Pump 44 GPM
• Sanitary Pipes

Not Included but Required:

• Air Compressor
• Flexible hoses to your process
• Connections to third party equipment

Specifications:

• Sieve Diameter: 550mm
• Wetted Parts: 304 AISI
• Not Wetted Parts: Painted
• Surface Finish: Mirror Polish <0.2 Ra Micron
• Casters for mobility
• Quick Release Clamps
• 2 Separations (Mesh Sizes as per Customer)
• On/Off Switch
• 230/480V 3 Phase CE Certified (UL, CSA Available)(Monophase Available)
