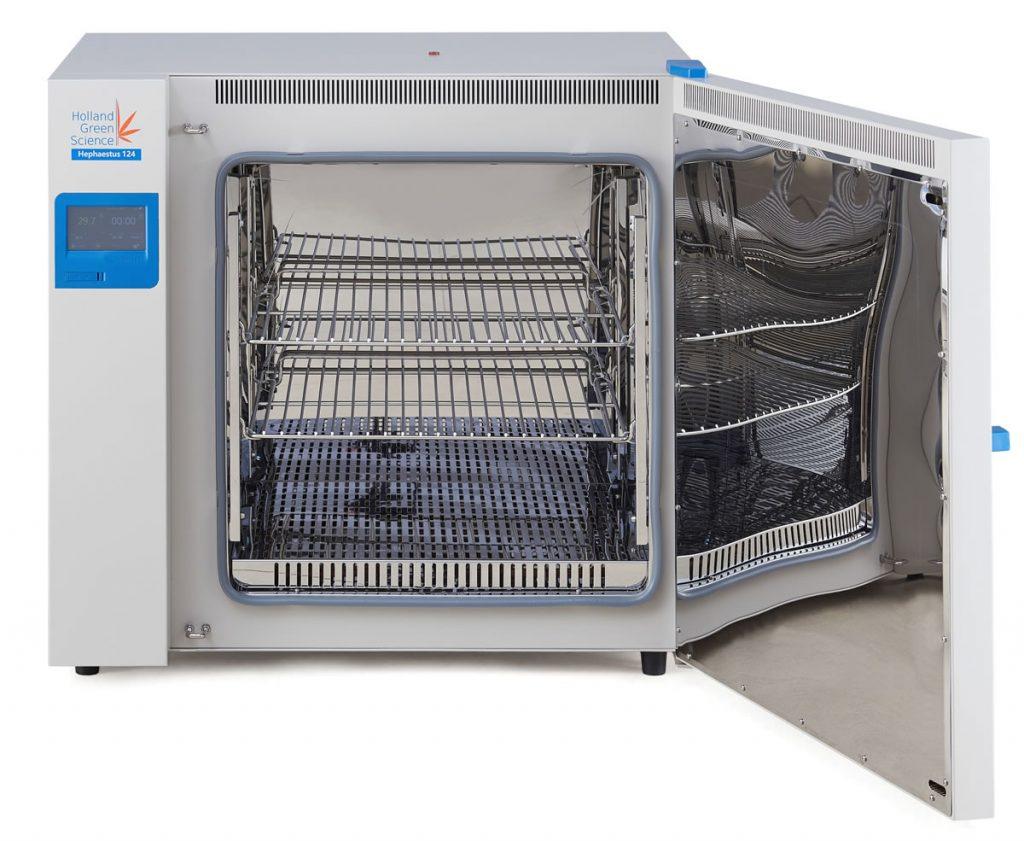

Hephaestus 124 Convection Oven
Hephaestus 124 Convection Oven
Introducing the Hephaestus 124 Convection Oven, a versatile and reliable solution for drying, melting, and purging a wide range of thermosensitive, oxidative, and easily decomposable materials. This innovative oven is ideal for various applications, including botanical flower, shatter, and isolates. With the option to purge or vent the oven using inert gas, the Hephaestus 124 minimizes oxidation to safeguard delicate compounds.
Safety is a top priority with the Hephaestus 124, as it is ETL and CE rated and equipped with over-temperature protection and an alarm system. The touch screen controller offers ease of use and features a process recording function with a USB interface for convenient data transfer. The oven's adjustable shelf height provides flexibility in accommodating different load sizes, while the overtemperature alarm ensures samples are protected with both sound and light alerts. Additionally, the Hephaestus 124 boasts highly efficient insulation, effectively limiting external touch point temperatures.
Description
The Hephaestus convection oven is designed for drying, melting, and purging materials which are thermosensitive, oxidative or easily decomposable. This includes botanical flower just as much as shatter or isolates. To further reduce oxidation you can purge or vent the oven with inert gas to displace any oxygen.
Safety:
- ETL and CE rated
- Over-temperature protection
- Over-temperature alarm
Features & Benefits:
- Touch Screen controller with process recording function and USB interface
- Adjustable shelf height for load flexibility
- Over-temperature alarm with sound and light alert operators to protect samples
Highly efficient insulation to limit external touch point temperatures
Technical details
Hephaestus 124 | |
HGS SKU Number | 10305001 |
Power Specification | 120V 60Hz 1ph – 1950W |
Capacity (L) | 124 L |
Temp range | ambient +10 °C to 200 °C |
Display Resolution | 0.1 °C |
Uniformity at 100 °C | ±2.5 °C |
Heat Up Time to 100 °C | 25 min |
Standard Number of Shelves | 2 (maximum 10) |
Max Load per Shelf | 20 kg |
Net Weight | 74 kg |
Timer Range | 1 to 5,999 min |
Internal Dimension W×D×H (mm) | 520 × 450 × 495 |
External Dimension W×D×H (mm) | 810 x 625 x 750 |
