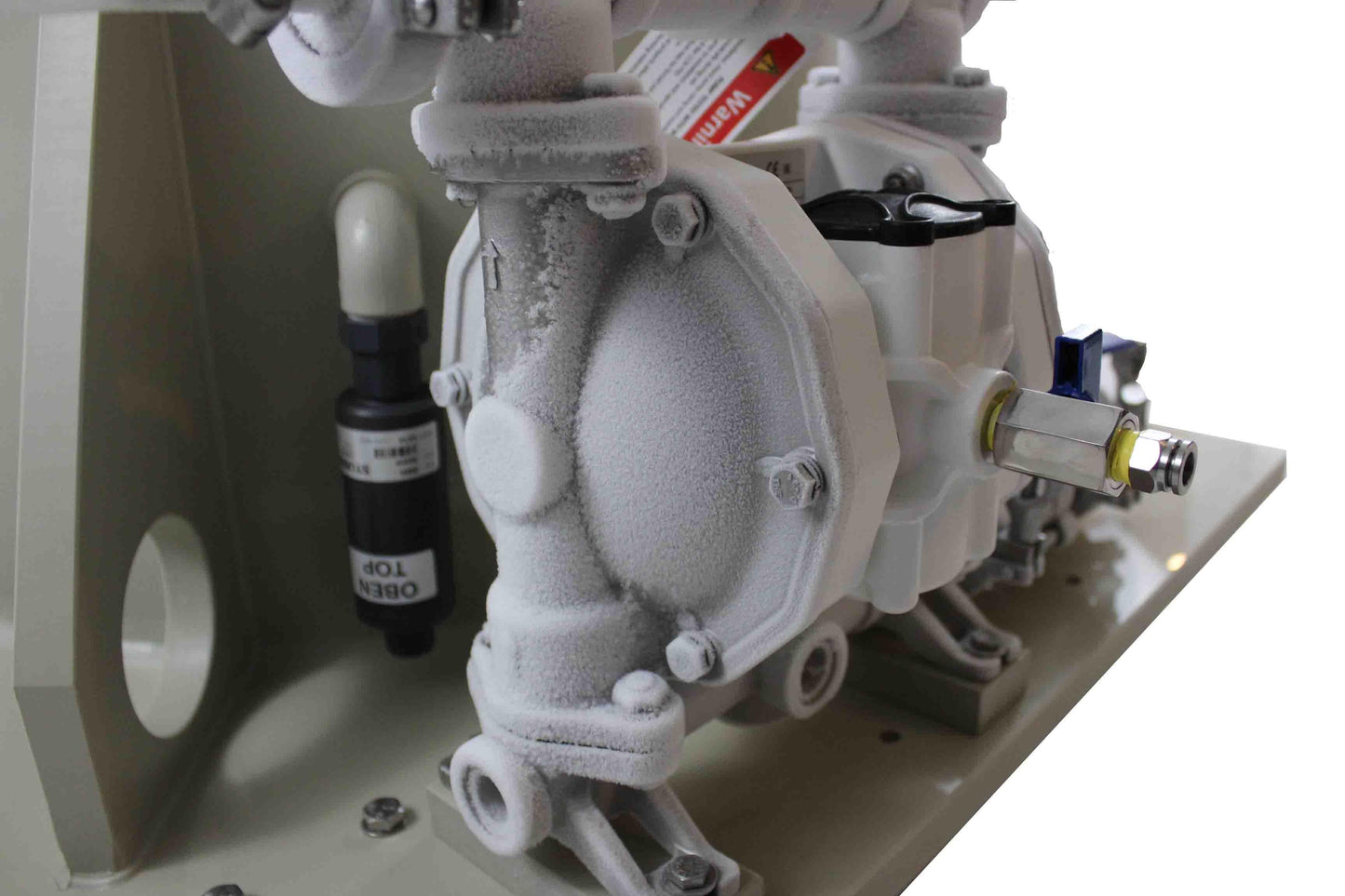

Ethanol Pump -20C AODD FDA Compliant 1/2" SS PF60

Ethanol Pump -20C AODD FDA Compliant 1/2" SS PF60

Regular price $1,110.00
Regular price Sale price $1,110.00
Sale Sold out
Shipping calculated at checkout.

FDA Compliant AODD Diaphragm Pump for Ethanol at -20C.

  • Model: Fuego S60 FDA
  • FDA Compliant Pump
  • Pump Material: 316 Stainless Steel Electro-polished
  • Size: 1/2"
  • Operating Temperature: -20 Celsius to +95C (-4F to 203F)
  • Non-Stall, Non-Freeze System
  • Diaphragm Material: Santoprene
  • Ball Material: PTFE
  • Fluid Connection: 1" Tri-Clamp Sanitary
  • Air Inlet: 1/4" BSP
  • Air Consumption: 14 CFM Max
  • Displacement: 140CC
  • Maximum Delivery: 15 Gallons per minute
  • Made in Italy

Upgrade your current pump system to a reliable AODD pump capable of cold temperatures. These pumps are C1D2 safe and powered by compressed air.

This pump works with the Sambo Creeck Filtration Filter Trolley 400 and 630mm filtration system. Tri-Clamp adapters necessary to connect to your trolley are not included.

This is a replacement pump and whetted parts are rated to -20C.

The manifold configuration is CD. Custom configuration available upon request.
