Solvent Pump -40C AODD FDA Compliant 1" SS PSF120

Solvent Pump -40C AODD FDA Compliant 1" SS PSF120

Regular price $2,685.00
Regular price $2,900.00 Sale price $2,685.00
Sale Sold out
Shipping calculated at checkout.
Request Quote

Upgrade your current pump system to a reliable air operated AODD double diaphragm pump capable of pumping solvents at cold temperatures. These pumps are C1D1 safe and powered by compressed air.

FDA Compliant AODD Diaphragm Pump for Alcohols at -40C.

    • Model: Fuego S120 SS
      • FDA Compliant Pump
      • AtEx Zone 1 Certified (US Equivalent is C1D1)
        • Pump Material: 316 Stainless Steel Electro-polished
          • Size: 1"
            • Operating Temperature: -40 Celsius to +95C (-40F to 203F)
              • Non-Stall, Non-Freeze System
                • Diaphragm Material: Santoprene+PTFE
                  • Ball Material: PTFE
                    • Fluid Connection: 1.5" Tri-Clamp Sanitary
                      • Air Inlet: 1/2" BSP (DN10)
                        • Air Consumption: 25 CFM Max
                          • Displacement: 200CC
                            • Maximum Delivery: 31 Gallons per minute
                              • Made in Italy

                                This pump works with the Sambo Creeck Filtration Filter Trolley 800mm filtration system. Tri-Clamp adapters necessary to connect to your trolley are not included.

                                This is a replacement pump and whetted parts are rated to -40C.

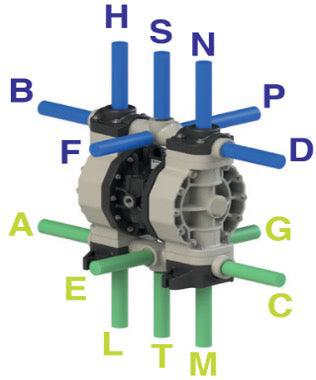

                                The manifold configuration is CB. Custom configuration is available upon request.
