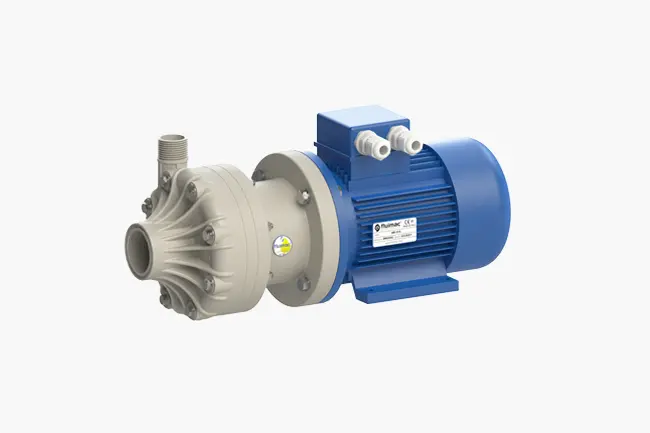

Dragon 6 - Centrifugal pumps with mechanical seals
Dragon 6 - Centrifugal pumps with mechanical seals
Regular price
$699.00
Regular price
Sale price
$699.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
DRAGON plastic horizontal centrifugal pumps are high performance pumps operated by a direct-drive electric motor for fast fluid transfer and drainage with flow-rates ranging from 6 to 40 m3/h.
The special semi-opened impeller design allows continuous pumping even with dirty fluids with apparent viscosity up to 500cps. and small suspended solids.
DRAGON centrifugal pumps feature a solid pump casing and a lantern for connecting the electric motor and inspection of the mechanical seal. The semi-opened impeller is fitted to the pump shaft that is integral with the drive shaft of the electric motor.
The shaft mechanical seal is housed at the rear of the impeller.
Technical Specifications:
| Product | DRAGON 6 PP WITH SINGLE PHASE MOTOR |
| Pump Type | Mechanical seal centrifugal pump |
| Casing Material | PP (Polypropylene) |
| O-ring Material | Viton |
| Seal Material | SiC+C (Silicon Carbide) |
| Connections | BSP threaded connections |
| Version | L (Long) |
| Motor Size | 71 |
| Motor | Single-phase motor, 2 poles - B3B5 |
| Series | Series 71 |
| Motor Power | 0.37 kW |
| Motor Speed | 2900 rpm |
| Color | RAL 5010 (Gentian blue) |
| Motor Efficiency | IE2 |
| Frequency | 50 Hz |
| Protection Rating | IP55 |
