FDA Compliant AODD Diaphragm Pump for Ethanol at -40C.
-
Model: Fuego S170 SS
-
FDA Compliant Pump
-
Pump Material: 316 Stainless Steel Electro-polished
-
Size: 1"
-
Operating Temperature: -40 Celsius to +95C (-40F to 203F)
-
Non-Stall, Non-Freeze System
-
Diaphragm Material: Santoprene+PTFE
-
Ball Material: PTFE
-
Fluid Connection: 1.5" Tri-Clamp Sanitary
-
Air Inlet: 1/2" BSP (DN10)
-
Air Consumption: 32 CFM Max
-
Displacement: 700CC
-
Maximum Delivery: 44 Gallons per minute
-
Made in Italy
Upgrade your current pump system to a reliable AODD pump capable of cold temperatures. These pumps are C1D2 safe and powered by compressed air.
This pump works with the Sambo Creeck Filtration Filter Trolley 800mm filtration system. Tri-Clamp adapters necessary to connect to your trolley are not included.
This is a replacement pump and whetted parts are rated to -40C.

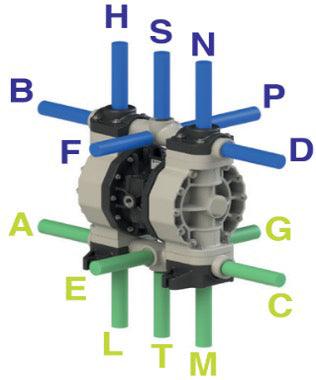

Manifold configuration is CB. Custom configuration available upon request.
