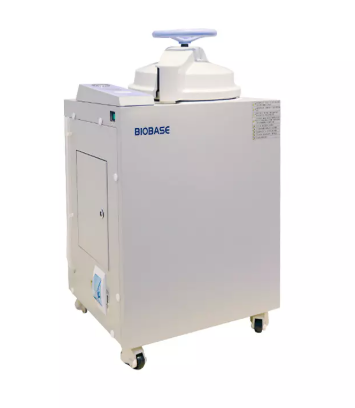

Vertical Autoclave BKQ-BI

Vertical Autoclave BKQ-BI

Regular price $0.00
Regular price Sale price $0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

It is widely used in laboratories, inspection departments, food processing enterprises, etc. for sterilization of equipment and medical waste. It uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect.

Features:

1. The hand wheel slides to open the door, which is fast and labor-saving.

2. Casters facilitate the movement of the equipment.

3. It has a fast maintenance window, and the electrical part does not need to remove the cover for maintenance.

4. Steam generation method: heating inside the main body, no external steam source is required.

5. Self-expanding silicone sealing ring has good sealing effect and long service life.  It is molded with transparent medical silicone.

6. Real-time detection and display of the temperature in the sterilization chamber, with a display accuracy of 0.1℃.

7. The LED digital tube displays temperature, time, alarm code and the indicator light shows the current operating status.

8. Using gravity displacement and positive pressure pulsating exhaust method to discharge the cold air in the load and sterilization room.

9. Optional printer to record the temperature during sterilization.


Technical Parameters:

Model

BKQ-B50I

BKQ-B75I

BKQ-B100I

BKQ-B120I

Capacity

50L

75L

100L

120L

Designed Pressure

0.28Mpa

Working Pressure

0.23MPa

Designed Temp.

150℃

Working Temp.

105~136℃

Temp. Display Accuracy

0.1℃

Chamber Material

S30408

Chamber Size(mm)

φ386*515

φ386*695

φ386*875

φ386*1055

Basket(mm)

φ365*360, 1pc

φ365*265, 2pcs

φ365*360, 2pcs

φ365*360, 1pc

φ365*265, 2pcs

Consumption

4.4KW

4.4KW

5.2KW

5.2KW

Altitude

≤3000m

Power Supply

Standard: 220V, 50Hz or 220V, 60Hz

Optional: 110V, 50Hz or 110V, 60Hz

Standard Accessories

Basket

Optional Accessories

Printer, mesh bottom basket, tray, bucket

External Size(W*D*H)mm

640*550*980

640*550*1080

640*550*1280

640*550*1380

Packing Size(W*D*H)mm

750*745*1100

750*745*1240

750*745*1450

750*745*1540

Net Weight(kg)

87

93

103

120

Gross Weight(kg)

102

115

123

135
