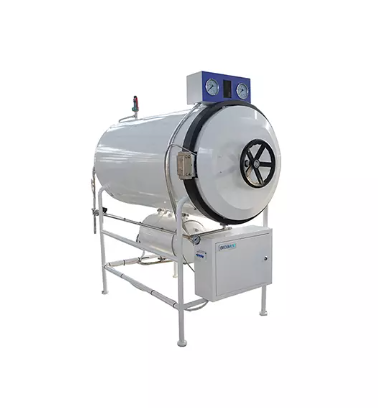

Horizontal Cylindrical Pressure Autoclave

Horizontal Cylindrical Pressure Autoclave

Regular price $0.00
Regular price Sale price $0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote
Introduction:

A sterilization equipment for labs and healthcare, featuring a cylindrical design, operates under high pressure to ensure effective decontamination of instruments and materials.

Features:

1. Brand New Operation Interface

The LCD touch screen can display temperature, time, operating status, and fault alarm in real time, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.

2. Drying Function

With auxiliary drying function, it is used to dry sterilized items.

3. Protection Device

Equipped with over-temperature and over-pressure automatic protection devices.

4. Steam Generator

The equipment has a built-in high-speed steam generator, which saves time and effort without external steam source.

5. Automatic Operation of The Program

The equipment is externally connected to the water source, and there is no need for manual water replenishment. After the customer selects the program, the equipment can complete the entire process from water injection to drying without human intervention. After the program is completed, the sound prompts that the sterilization is complete.

6. Programs: Wrapped, Unwrapped, Dressing, Rubber, Drying, DIY solid.


Technical Parameters:

Model

BKQ-H150

BKQ-H200

BKQ-H300

BKQ-H400

Capacity

150L

200L

300L

400L

Designed Pressure

0.28MPa

Built-in Steam Generator

Yes

Rated Working Pressure

0.12MPa/0.23MPa

Rated Operating Temperature

121℃/134℃

Ambient Temp.

5~40℃

Adjustable Drying Temperature Range

115~134℃

Temp. Control Precision

0.1℃

Sterilization Timing Adjustable Range

0~99min

Adjustable Drying Timing Range

0~99min

Vacuum System

No

Chamber Material

304 stainless steel

Chamber Size(Ф*L)

Ф500*820mm

Ф500*1050mm

Φ650*935mm

Ф650*1235mm

Power Supply

Three-phase AC380V, 50/60Hz

Three-phase AC220V, 50/60Hz

Single-phase AC220V, 50/60Hz

(Note: Be careful when ordering this voltage,the current is close to 75A)

Rated Power

16KW

Altitude

≤3000m

Standard Accessories

Net rack*1, Net lid*1

External Size(W*D*H)mm

1270*680*1550

1500*680*1550

1550*815*1750

1850*815*1750

Package Size(W*D*H)mm

1500*820*1910

1730*820*1910

1750*950*2030

2000*950*2030

Net Weight(kg)

230

250

340

385

Gross Weight(kg)

320

355

475

535
