Xiros 2 Freeze Dryer

Xiros 2 Freeze Dryer

Regular price $72,000.00
Regular price Sale price $72,000.00
Sale Sold out
Shipping calculated at checkout.
Request Quote

The Xiros high-performance freeze dryer is a versatile and customizable system used in the global pharmaceutical industry for the process of freeze-drying. With over 5,000 units sold worldwide, it is a reliable and popular choice for pharmaceutical companies. The system is available in various sizes, with ice condenser capacities ranging from 10 kg to 1,000 kg and beyond. The product is ETL and CE-rated for safety, and all machines are available in EURO or FDA GMP ready. The Xiros freeze dryer is designed with rounded edges and corners for easy cleaning and has high-performance condenser coils made from polished AISI-304L stainless steel tubing. The vacuum system uses a vacuum pump and a mechanical booster pump to achieve better vacuum, with an optional Edwards or equivalent dry pump to avoid product contamination from back-streaming vacuum oil. The control system has optional 21 CFR Part 11 and cGAMP compliance and offers recipe management and access control according to authority levels.

Safety:

  • ETL and CE rated

Features & Benefits:

Chamber/Condenser/Shelves

  • GB-150/PED/ASME Code Pressure Vessel optional
  • All chamber edges and corners are rounded to facilitate easy cleaning
  • High-performance condenser coils are made from polished and AISI-304L stainless steel tubing
  • Chamber – optional condenser isolation valve for pressure rise test to confirm process completion in-situ

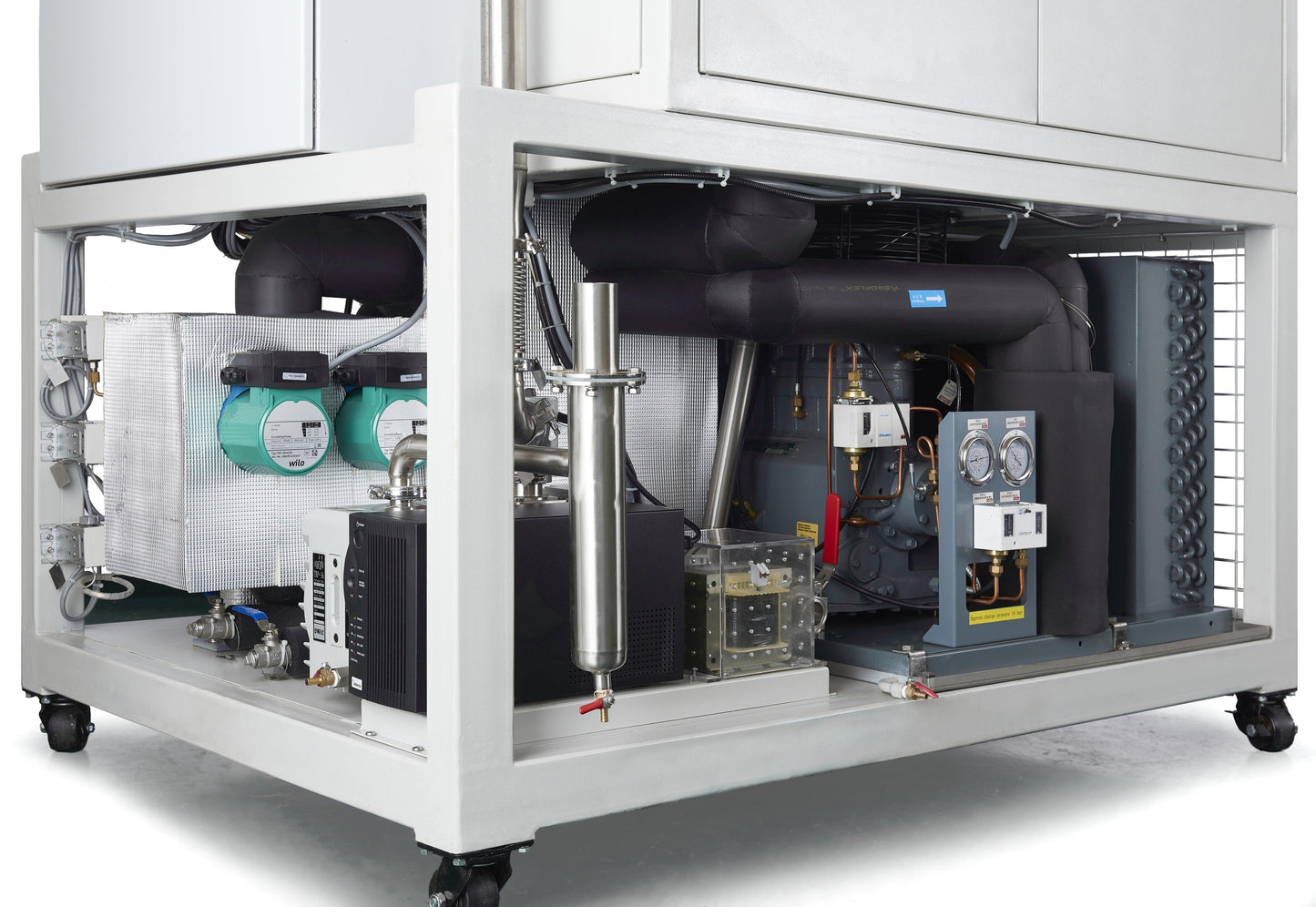

Refrigeration System

  • Modular design to achieve reliable and high-efficiency production
  • World-class refrigeration units ensure reliability with long service life
  • Each compressor has an independent circuit to cool shelves or condenser
  • Environment-friendly HFC refrigerant: free of CFC and HCFC
  • Optional liquid nitrogen cooling

Vacuum System

  • Vacuum pump plus mechanical booster pump (for large-scale freeze dryers) used to achieve better vacuum, (i.e. less than 0.01 mbar vacuum).
  • The vacuum anti-suck valve closes automatically in case of a power outage to preserve the product vacuum environment
  • Vacuum pump: Edwards® or equivalent
  • Optional Edwards® or equivalent dry pump to avoid product contamination from back-streaming vacuum oil
  • Vacuum gauge: MKS® capacitance manometer or Edwards® APG-MP vacuum gauge
  • Vacuum control: Needle valve or MKS® PID control valve

Control System

  • Optional 21 CFR Part 11 and cGAMP compliance
  • Access control according to authority levels
  • Audit trail records user actions and changes to process parameters
  • Manual or automatic control available
  • Recipe management
  • PLC/Touch Screen: Omron®/Siemens®/AB®

Technical details

  Xiros 2
HGS SKU Number 10407001
Power Specification 480V 60 Hz 3ph – 19 KW
Equipment Size (L*W*H) 2000 x 1400 x 2640 mm
Weight (approx.) 2,500 kg
Maximum Ice Capacity 10kg
Minimum Ice Condenser temperature -45°C
Shelf Stack up to 7 shelves with 1 upper radiant shelf spacing 51 mm
