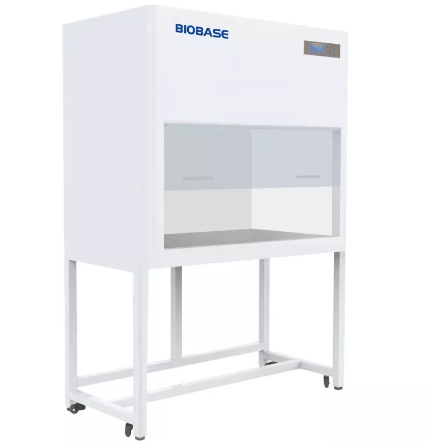

Vertical Laminar Flow Cabinet

Vertical Laminar Flow Cabinet

Regular price $0.00
Regular price Sale price $0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air. Laminar flow cabinet is widely used in research laboratories, hospitals, manufacturing facilities and other research and production environments.

Laminar Flow Cabinet-sample protection only

Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.

The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to prevent the infiltration of contaminated room air.

Laminar flow cabinet is widely used in research laboratories, hospitals, manufacturing facilities and other research and production environments.




Models:

Model

BBS-V680

BBS-V800

BBS-DDC

 BBS-SDC

External Size

(W*D*H), mm

680*410*1160

802*650*1550

1040*615*1770

 1440*615*1770

Internal Size

(W*D*H), mm

 630*375*615

800*530*540

940*540*545

 1340*540*545

Work Surface

Height

 /

660mm

750mm

 750mm

Display

 LED Display

Airflow Velocity

 Average of 0.3~0.5m/s, air speed adjustable.

Material

 Main Body: Cold-rolled steel with anti-bacteria powder coating

 Work Table: 304 stainless steel(except model BBS-V680)

Pre-filter

 Polyester fiber, washable

HEPA Filter

 99.999% efficiency at 0.3um

Noise

 <65dB

Front Window

 /

Manual,5mm toughened glass, anti-UV

Max Opening

 /

490mm

310mm

310mm

Illuminating Lamp

Fluorescent Lamp

8W*1

LED Lamp

8W*1

LED Lamp

12W*1

LED Lamp

16W*1

UV Lamp

15W*1

 20W*1

18W*1

30W*1

 Emission of 253.7 nanometers

 Consumption

 160W

 350W

 350W

600W

Standard Accessory

Fluorescent lamp, UV lamp*2

Water & gas tap

LED Lamp

UV lamp*2

Base stand

LED Lamp

UV lamp*2

Base stand

LED Lamp

UV lamp*2

Base stand

Optional Accessory

/

Electric height adjustable base stand

 Caster

/

 Universal wheel with leveling feet

 Power Supply

 AC 220V±10%, 50/60 Hz; 110V±10%, 60HZ

 Gross Weight

 50kg

 116kg

 131kg

174kg

 Package Size (W*D*H)mm

 840*560*1380

 960*800*1800

 1200*850*1360

1600*850*1360


Standard Accessory:

Fluorescent lamp 1pc

UV lamp*2( for all models )

Water & gas tap (for model BBS-V680)

Base stand (except model BBS-V680)
