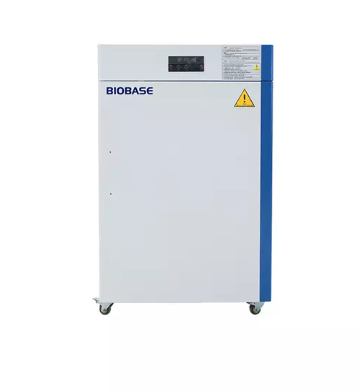

UV Sterilization Cabinet 200L

UV Sterilization Cabinet 200L

Regular price $0.00
Regular price Sale price $0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

Application:
Suitable for items that are not resistant to high temperatures, glass sugar porcelain cups, ceramics, production supplies, currency,
non-woven fabric, composite paper, cleaning appliances, tableware, towels, clothes, shoes, packaging materials and other products.
The use of three-sided high intensity sterilization, the use of ultraviolet and ozone synergistic sterilization, ozone disinfects areas
not exposed to UV rays, kill the surface of the virus or bacteria.

Technical Parameters:

Model

BJPX-SVO200

BJPX-SV200

Capacity

200L

Type

With ozone

Without ozone

UV Ray Wavelength

253.7/184.9nm

253.7nm

Sterilization Way

2 sides of UV ray + 1 side of ozone

3 sides of UV ray

UV Lamp Material

Quartz glass

Power Supply

Standard: AC220V, 50/60Hz

Optional: AC110V, 50/60Hz

Consumption

120W

Altitude

<2000m

Shelf

500*520mm, Standard 2pcs, can be optional

Standard Accessories

Shelf*2, Doorknob*1, UV lamp*6

Optional Accessories

Ozone UV lamp, wavelength is 184.9nm

External Size(W*D*H)mm

750*663*1200

Internal Size(W*D*H)mm

518*523*778

Package Size(W*D*H)mm

875*788*1265

Net Weight(kg)

81

Gross Weight(kg)

100


Recommended UV Exposure Time:

Microorganism Species

Exposure Dose

Exposure Time

Bacterial Propagules

≥10000μW.s/cm2

10min

Bacterial Spores

≥100000μW.s/cm2

10min

Virus

10000μW.s/cm2≤Exposure Dose≤100000μW.s/cm2

10min

Fungal Spores

General Exposure Dose≤100000μW.s/cm2

Special Exposure Dose up to 600000μW.s/cm2

60min

When the target microorganism is unknown

≥100000μW.s/cm2

10min

Remarks: The suitable temperature range for ultraviolet disinfection is 20℃~40℃. If the temperature is too high or too low, the disinfection effect will be affected, and the disinfection time can be appropriately extended.
