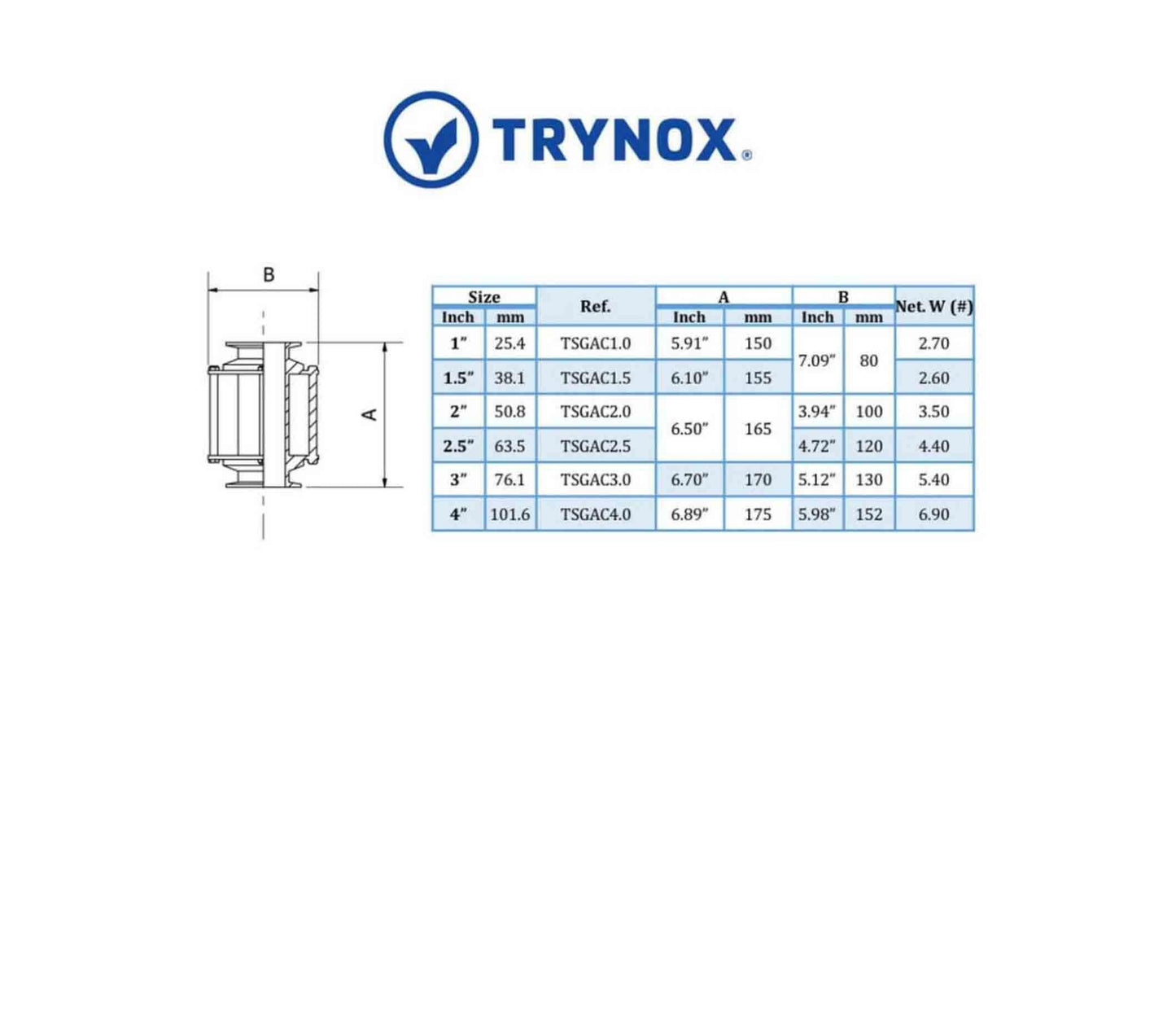

Trynox Sanitary Sight Glass Clamp Ends

$77.67

Trynox Sanitary Sight Glass Clamp Ends

$77.67

Grade

Size:

1"

1-1/2"

2"

2-1/2"

3"

Grade:

316L

304

Make Sure Your Product Flow is Looking Great With Our Trynox Sanitary Sight Glass Clamp

Though tubular sight glass clamps are a great way to get a 360 view of your hygienic fluid product, it is important to have high quality sanitary fittings

Fits to sanitary stainless steel tubing
Surface finishing 180 Grit ID/150 Grit OD
Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit ambient temperature
Suitable for use in food, beverage, and other hygienic applications
The tri-clamp sight glass is available in only 316L stainless steel alloy
Available in sizes ranging from 1 inch all the way to 4 inches

Thanks to high-quality, durable Trynox sanitary stainless steel, you can effectively place end fittings on your sanitary sight glass to ensure clean, efficient fluid operations. Whether your business is in the food, beverage, or pharmaceutical industry, count on our sanitary stainless steel fittings products to get the job done right every time. No Sanitary Sight Glass Clamp is complete without end tri-clamp connections. Make sure you order some for your hygienic fluids operation for your business.

A-270 Sanitary Tubing Dimensional Tolerances

Tubing

A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD	Wall Thickness	Outside Diameter	Length	Wall
1" (25.4)	0.065" (1.65)/0.049" (1.25)	+/-0.005 (0.13)	+1/8" (3.18)	- 0 +/-10.0%
1-1/2" (38.1)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2" (50.8)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2-1/2" (63.5)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
3" (76.2)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
4" (101.6)	0.083" (2.11)	+/-0.015 (0.38)	+1/8" (3.18)	- 0 +/-10.0%

Sanitary Gaskets General Performance Properties

	Nitrite (Buna)	Fluoro-Elastomer(Viton)	Platinum Cured Silicone Elastomer	Ethylene-Propylene Diene Monomer(EPDM)	PolyTetra Fluoro Ethylene(Teflon)	Tufsteel
Letter Designation	U	SFY	PX	EPDM	G	GTS
Sanitary Gasket Color Code	RED	Yellow & White	Pink	Green	Remains White	Remains Grey
Max Temperature Intermittent	240 F	410 F	580 F	300 F	450 F	578 F
Max Temperature Continuous	210 F	380 F	490 F	260 F	400 F	526 F
Minimum Temperature	-65	-20	-85	-70	-350	-370
USP Class VI	No	Yes	Yes	Yes	Yes	Yes
Steam in Place Performance	Poor	Good	Good	Good	Good	Excellent
Acids, Dilute	Good	Excellent	Good	Good	Excellent	Excellent
Alkalies	Good	Good	Excellent	Excellent	Excellent	Excellent
Alcohol, Glycols	Excellent	Good	Excellent	Excellent	Excellent	Excellent
Animal Oils & Fats	Excellent	Excellent	Good	Fair	Excellent	Excellent
Soaps, Bleaches, Detergents	Fair/Good	Good	Fair	Excellent	Excellent	Excellent
Vegetable Oil	Excellent	Excellent	Excellent	Fair	Excellent	Excellent
Water	Good	Excellent	Good	Excellent	Excellent	Excellent
