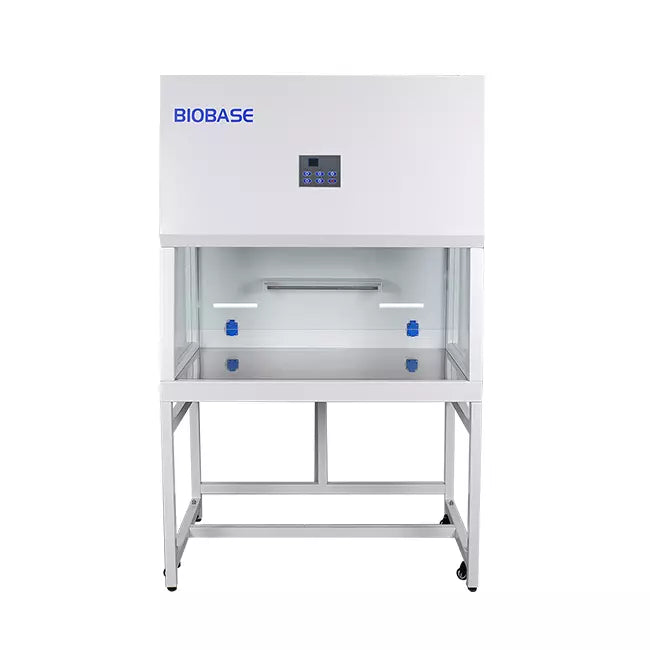

Laboratory Cabinet

Laboratory Cabinet

$0.00
$0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote



LED Display

LED display

Waterproof Socket

2 waterproof sockets are located in the back wall, for optimum convenience of using small devices inside the cabinet.

UV Lamp

Emission of 253.7 nanometers for most efficient decontamination.

Side Glass Window

 Side glass windows maximize light and visibility inside the cabinet, providing a bright and open working environment.


Shelf with IV bar

Air Pattern

ADVANTAGE:

  1. LED display
  2. 2. UV sterilization system.
  3. 3. HEPA filter efficiency 99.999% at 0.3μm.
  4. 4. Interlock function: UV lamp only can be switched on when the front window is closed, ensuring operator safety.
  5. 5. UV timer (0-90 minutes): When the setting time expires, the UV lamp automatically switches off in preparation for the next experiment.

Models:



TECHNICAL PARAMETERS:

Model

800

1000

1200

1300

1500

External Size (W*D*H)

800*700

*1770mm

1000*705

*1770mm

1200*700

*1770mm

1300*700

*1770mm

1500*700

*1770mm

Internal Size (W*D*H)

700*595

*550mm

900*595

*560mm

1100*595

*550mm

1200*595

*550mm

1400*595

*550mm

Work Surface Height

750mm

Material

Main Body: Cold-rolled steel with anti-bacteria powder coating

Work Table: 304 stainless steel

Front & Side Windows

5mm toughened glass , anti-UV

Motorized

Manual

Motorized

Motorized

Motorized

Max Opening

300mm

320mm

300mm

300mm

300mm

Pre-Filter

Polyester fiber, Washable

HEPA Filter

99.999% efficiency at 0.3μm.

Airflow Velocity

0.3-0.5m/s, speed adjustable

Noise

≤65dB

UV Lamp

20W*1

20W*2

30W*1

30W*1

40W*1

Emission of 253.7 nanometers, with UV timer

Illumination Lamp

LED 8W*2

40W*1

LED 12W*2

Illumination

≥1000Lux

Shelf with IV bar

Stainless steel, 502*150*50mm (W*D*H)

caster

Universal caster with leveling feet

Consumption

400W

300W

600W

600W

600W

Waterproof Socket

Two, total load≤500W

Power Supply

AC 220V±10%, 50/60Hz;110V±10%,60Hz

Standard Accessory

UV lamp, Fluorescent lamp, Base stand, Waterproof socket*2, Shelf with IV bar

Gross Weight

168kg

178kg

220kg

231kg

250kg

Package Size (W*D*H)

960*940

*1450mm

1150*930

*1450mm

1350*930

*1450mm

1450*930

*1450mm

1650*930

*1450mm



Standard Accessory:



UV lamp

Fluorescent lamp

Base stand

Waterproof socket

Shelf with IV bar

1 Piece

1 Piece

1 Piece

2 Pieces

! Piece
