Nucleic Acid Extraction System BNP32 / BNP48

Nucleic Acid Extraction System BNP32 / BNP48

Shipping calculated at checkout.



BNP32 / BNP48 System is a fully automated nucleic acid extraction system that brings you walk-away automation, designed to minimize user intervention and extraction-to-extraction variability. In addition to providing quality purified eluates, the BNP32 / BNP48 System offers onboard primary-sample handling and mixed-batch sampling for up to 32 or 48 samples per run.

Feature:

  1. 7-inch touch screen, easy to use, fast response
  2. User-defined cracking and elution temperature
  3. UV disinfection function, time range 1min-24hour
  4. Automatic control system, no need to connect to computer
  5. Free programming to meet the needs of different reagent
  6. Open system, fully automatic, stable results and good repeatability
  7. Extract rapidly 9-40 minutes , 32/48 samples can be extracted at the same time.

Models:

Technical Parameter:

Model

BNP32

BNP48

Sample Quantity

32

48

Processing Volume

60µL-1000µL

Sample Volume

20-500µL

Sample Throughput

1-32

48

Magnetic Bead Recovery

>98%

Extracting the Difference Between Holes

CV≤3%

Heating Temperature

8 independent heating modules, customize lysis and elution temperature (temperature range) according to your needs

Oscillating Mixing

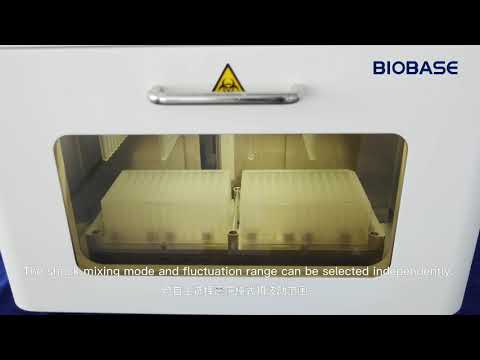

Low,medium and high third gears are adjustable, and the fluctuation range can be adjusted with the reagent volume

Reagent Type

Magnetic bead open platform

Extraction Time

8-60 min/round (depending on the reagent used)

Internal Program

48 groups

50000 groups

Program Management

Powerful program editing capabilities to meet different reagent needs. U disk program import and export can be achieved

Safety Door Design

After the safety door is opened,the program operation will be automatically suspended, and the program can continue t run after
the safety door closed

Built-in Air Duct

Yes

Yes

Ultraviolet Irradiation

Yes

Packing Size(W*D*H)mm

580*510*700

700*520*750

Gross Weight(kg)

51

80
