Multifunctional Workstation

Multifunctional Workstation

Regular price $0.00
Regular price Sale price $0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

The Multifunctional workstation is the world's exclusive nucleic acid detection workstation, specially developed for small laboratories. Integrate traditional PCR laboratory functions into one device. Allow more small laboratories to have PCR detection capabilities

Application:

It is suitable for rapid nucleic acid detection in the emergency department and laboratories

Features:

(1) Global exclusive

(2) Small dimension, save space, economical and convenient.

(3) Automatic air speed adjustable with filter block.

(4) With memory function in case of power-failure.

(5) Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; Blower and front window.

(6) Audio and visual alarm: Filter replacement, window over height, abnormal air flow velocity etc.

(7) Time reserve function: This can set the UV lamp and fan working time.

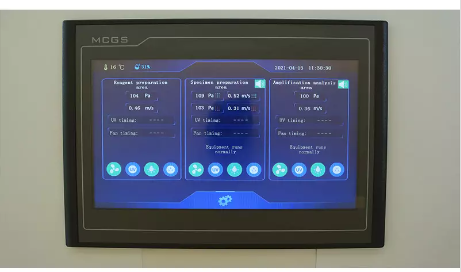

LCD Display

Large Digital LCD display is easy to monitor all the safety parameters at a glance and ergonomically sized control panel improves user interface.

Work Zone

Work zone is made of 304 stainless steel, Unibody design.

Waterproof Socket

2 waterproof sockets are located in the each area,

for optimum convenience of using small devices inside the cabinet.

 UV Lamp

Emission of 253.7 nanometers for most efficient decontamination

Front Window

Toughened glass>5mm, anti UV

Windproof plate

Effectively isolate the cross-effects of airflow in various areas

Reagent preparation area:

Positive pressure, vertical laminar flow design, equipped with primary filter and HEPA filter, which can protect the reagent.

Specimen preparation area:

Negative pressure; the air inlet is through the front window glass door, the bottom of the operation area is returned to the air, and the top is exhausted; the upper and lower two HEPA filters are equipped to protect personnel from harmful aerosol infection and protect samples from external pollution. It can protect samples from cross-infection.

Amplification analysis area:

Negative pressure, the air inlet is through the front window glass door, the bottom of the operation area is returned to the air, and the top is exhausted, and the HEPA filter can protect both the personnel and the environment. Not infected by harmful aerosols.

Models:


Model

PCR1600

PCR2100

PCR2500

External Size(L*W*H)mm

1600*710*1900

2100*710*2000

2500*850*2100

Reagent Preparation Area

Operating Area Size(L*W*H)mm

440*560*510

640*560*510

640*560*610

Pressure

Positive

Airflow Velocity(m/s)

0.3-0.45

Airflow Volume(m3/h)

190-290

290-430

380-560

Exhaust Type

-

Specimen Preparation Area

Operating Area Size(L*W*H)mm

560*560*510

660*560*510

1060*560*610

Pressure

Negative

Airflow Velocity(m/s)

Downflow: 0.33±0.025

Inflow: 0.53±0.025

Airflow Volume(m3/h)

210

250

400

Exhaust Type

TypeA2, 30% exhaust, 70% recirculation

Amplification Analysis Area

Operating Area Size(L*W*H)mm

440*560*510

640*560*510

640*560*610

Pressure

Negative

Airflow Velocity(m/s)

≥0.4

Airflow Volume(m3/h)

≥160

≥180

≥180

Exhaust Type

30% exhaust, 70% recirculation

100% exhaust

100% exhaust

ULPA

Filter

Four ,99.999% efficiency at 0.12μm.

Clean Level

Class 100(IS0 Class 5)

Class 100, Except Amplification Analysis Area

Front Window

Manual, Toughened glass, Anti UV

Max Opening

400mm

480mm

Noise

≤67 dB(A)

Vibration

≤5μm

UV Lamp

15W*3, UV timer, UV life indicator

15W*3, UV timer, UV life indicator

30W*1,15W*2

LED Lamp

4W*6

8W*6

8W*4,12W*2

Illumination(lx)

≥500( Each area)

≥650(Each area)

≥650(Each area)

Sockets

The load of two sockets (Each area): 500W, total 6 sockets

Display

Touch Screen

Control System

Microprocessor

Visual and Audio Alarm

Filter replacement, window over height, abnormal air flow velocity

Work Surface Height

750 mm

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating

Power Supply

AC220V±10%, 50/60Hz; 110V±10%, 60Hz

Consumption

600W, total 2100W (With load)

1000W, total 2500W

Standard Accessory

LED lamp*6 UV lamp*4, Windproof plate*2(Only for PCR2100/2500), Waterproof sockets*6

Package Size

(W*D*H)

1750*980*1400mm

2250*980*1400mm

2650*1120*1400mm

Gross Weight

400KG

450KG

500KG





Multifunctional workstation product list

Item

Name

Model

Quantity

Reagent preparation area



Pipette

0.5-10ul

1

Pipette

10-100ul

1

Pipette

100-1000ul

1

Centrifuge

MINI-7

1

Mixer

BJPX-VW

1

Tips

10ul,100ul, 1000ul

-

Centrifuge tube

1.5ml

-

8-strip tube

0.2ml

-

QPCR kit

Covid-19

-

Specimen preparation area



Pipette

0.5-10ul

1

Pipette

10-100ul

1

Pipette

100-1000ul

1

Disposable Virus Sampling Collector (One Step method)

-

-

Tips

10ul,100ul, 1000ul

-

Centrifuge tube

1.5ml

-

Centrifuge

MINI-7

1

Mixer

BJPX-VW

1

Nucleic Acid Extraction System (only for PCR2500)

BNP32 or BNP8

1

Amplification analysis area

QPCR

FQD-96A

1

Other related equipment

Biosafety Transport Box

BTB-L5

1

-25℃ Freezer

BDF-25V270

1

-86℃ Freezer

BDF-86V158

1
