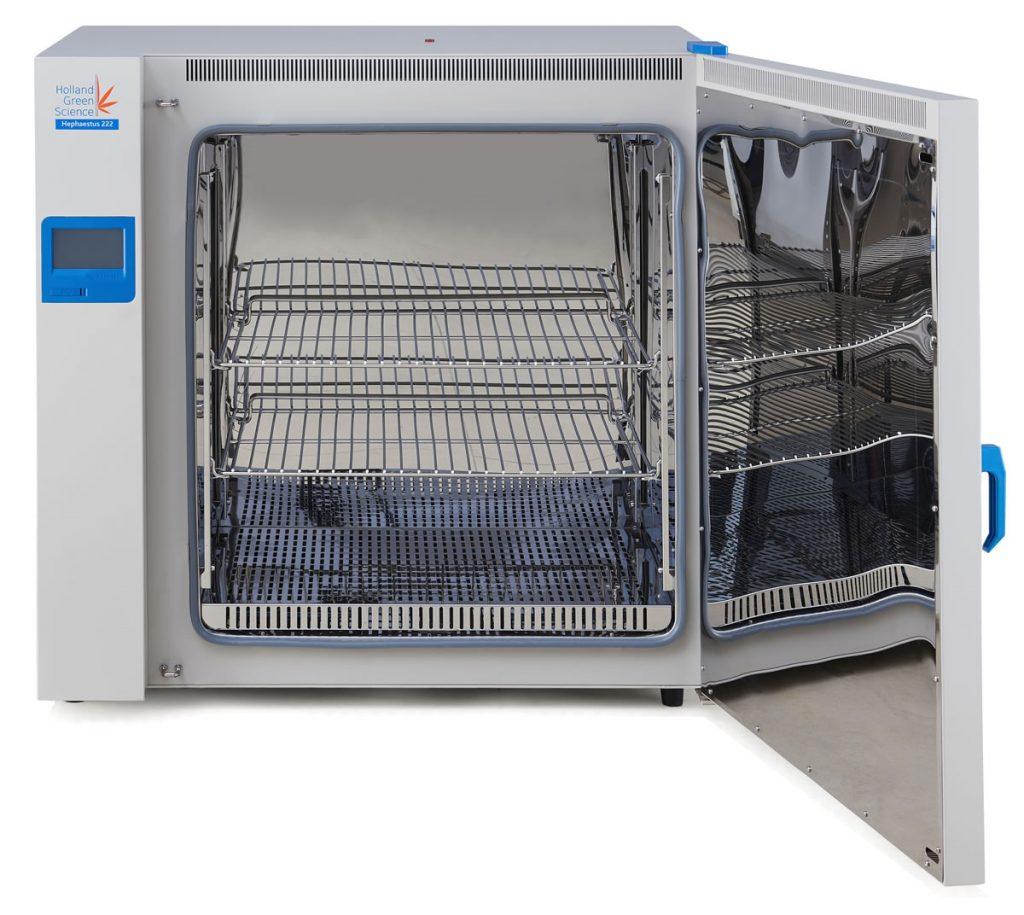

Hephaestus 222 Convection Oven

Hephaestus 222 Convection Oven

$2,300.00
$2,300.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

Introducing the Hephaestus 222 Convection Oven, a versatile and reliable solution for drying, melting, and purging thermosensitive, oxidative, or easily decomposable materials. Whether you're working witH flowers, shatter, or isolates, this oven provides optimal conditions to protect your samples. With the ability to purge or vent the oven using an inert gas, you can minimize oxidation and safeguard compounds. Safety is paramount, as the Hephaestus 222 is ETL and CE-rated, equipped with overtemperature protection and an alarm system to ensure secure operations.=

Description

The Hephaestus convection oven is designed for drying, melting, and purging materials which are thermosensitive, oxidative or easily decomposable. This includes botanical flower just as much as shatter or isolate. To further reduce oxidation you can purge or vent the oven with inert gas to displace any oxygen.

Safety:

  • ETL and CE rated
  • Overtemperature protection
  • Overtemperature alarm

Features & Benefits:

  • Touch Screen controller with process recording function and USB interface
  • Adjustable shelf height for load flexibility
  • Overtemperature alarm with sound and light alert operators to protect samples

Highly efficient insulation to limit external touch point temperatures



Technical details

  Hephaestus 222
HGS SKU Number 10305002
Power Specification 230V 60Hz 1ph – 2250W
Capacity (L) 222 L
Temp range ambient +10 °C to 200 °C
Display Resolution 0.1 °C
Uniformity at 100 °C ±2.5 °C
Heat Up Time to 100 °C 25 min
Standard Number of Shelves 2 (maximum 16)
Max Load per Shelf 20 kg
Net Weight 103 kg
Timer Range 1 to 5,999 min
Internal Dimension W×D×H (mm) 650 × 500 × 650
External Dimension W×D×H (mm) 940 × 695 × 905
