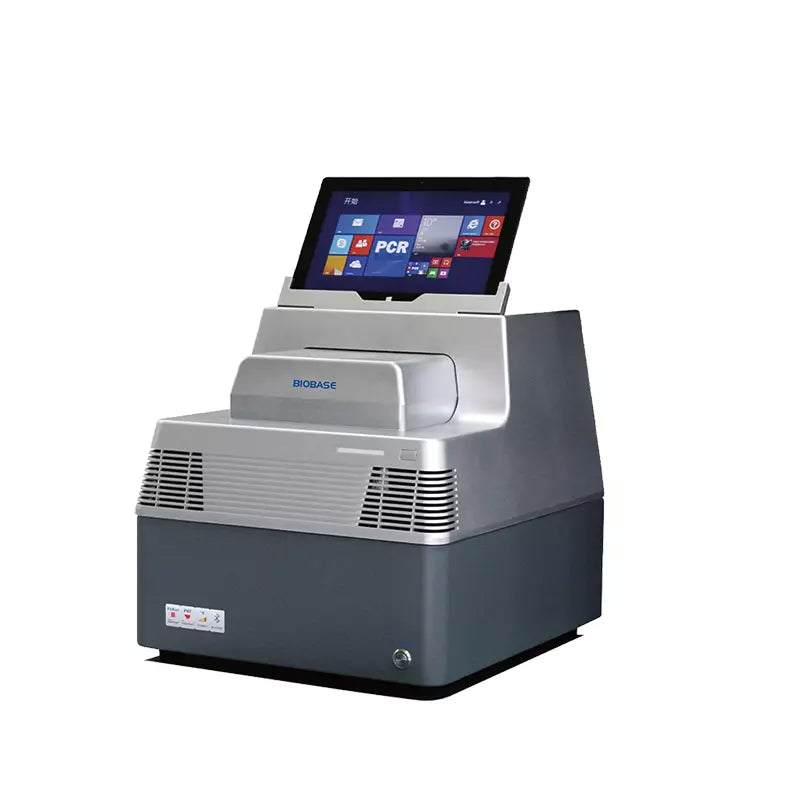

Fluorescence Quantitative PCR Detection System
Fluorescence Quantitative PCR Detection System
Features
- Whole block scanning and formulated line scanning mode, 96-well double-colour scaning takes only 5.5s
- 6 channels fluorescencedetection,no cross talk between different channels.
- Unique bottom detection,compatible to reaction volume down to 5μl
- New automatic hot lid,automatic open and close which is prevenT reagent evaporation
- LED excitation light source with super long service life
- New TE module with special technique to ensure long service life
- Available for a variety of scientific research.
Models:
Technical Parameters
Product Name |
Fluorescence Quantitative PCR Detection System |
|||||
Model |
FQD-96A |
|||||
Sample Capacity |
96x0.2ml PCR plate, 12x8-strip tubes, 96*0.2ml single tube(Transparent Bottom) |
|||||
Reaction system |
5~100μl |
|||||
Dynamics Range |
1-1010 |
|||||
instrument registration certificate |
G.X.Z. 20153400273 |
|||||
Channel |
4 |
|||||
Emission Wavelength |
500-800nm |
|||||
Detection path |
F1 |
F2 |
F3 |
F4 |
F5 |
F6 |
Suitable probe.dye |
FAM,SYBR GREEN I |
HEX/VIC/TET/JOE/CY3/NED/TAMRA |
ROX,TEXAS-RED |
Cy5 |
Cy5.5 |
Reserved path |
Excitation wavelength |
300~800nm |
|||||
Detection wavelength |
500~800nm |
|||||
Module temp. range |
4-105℃(resolution:0.1℃) withSOAK Low Temp.storage Function |
|||||
RampRate |
4.0℃/s(max) |
|||||
Temp. Control accuracy |
±0.1℃ |
|||||
Temp. uniformity |
≤ ±0.3℃ |
|||||
Temp. control mode |
Block mode andTube Mode (Automaticcontrolbasedonliquid level) |
|||||
Operation mode |
Continuous operation |
|||||
Gradient Temp. Range |
1-36℃ |
|||||
Hot-lid Temp. Range |
30-110℃(Adjustable, Defaultby105℃ and Automatic Hot-lid) |
|||||
FluorescenceintenseDetection Repeatability |
5% |
|||||
Scanning Mode |
Full plate scanning and designated line scanning |
|||||
Programming |
Max 20 Segments for Each Program, Max 99 Cycles |
|||||
Operation Mode |
Continuous |
|||||
Scanning time |
5.5s |
|||||
Special function |
Absolute quantitative automatic analysis, relative quantification, SNP Analysis, melting curveanalysis,6 independent temperature zones, HRMmulti-channel crosstalk calibration, background correction, auto gain, customized parameters,etc |
|||||
Operation system |
Microsoft:Windows7/Windows8.1/ Windows10 Software:excel2000/2002/2003/2007/2012 |
|||||
Min computer configuration |
RAM:512M,hardware space:10GB CPU:Pentium 4 virtual memory≥1000MB |
|||||
Power supply |
100-240V 50/60Hz 600W |
|||||
Dimension(L*W*H) |
410*386*352mm |
|||||
Port method |
SupportUSBandRS232data port andBluetoothport |
|||||
Certification |
Ferrotec Peltier/CE/EMC/RoHS2.0/PICC Product quality liability insurance/IVD/MET |
|||||
Packing size |
720*680*640mm |
|||||
Gross weight |
55kg |
