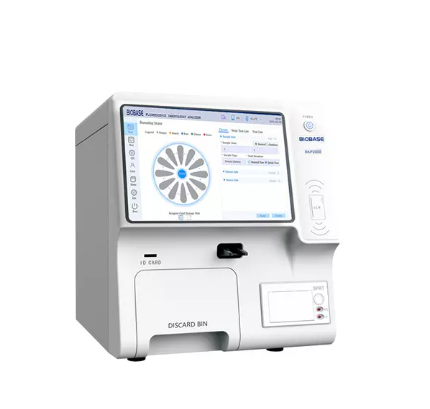

Fluorescence Immunoassay Analyzer BKP2000
Fluorescence Immunoassay Analyzer BKP2000
The BKP2000 multi-channel dry fluorescence immunoassay analyzer features 12 independent incubation channels, automatic detection of reagent card insertion, automatic printing of test results, and automatic card loss handling. The 10.1-inch LCD screen provides an enhanced visual experience.
It is primarily composed of an optical detection module (fluorescence), a scanning module, a data processing module, a liquid crystal display module, an incubation module, an information acquisition module (ID card reader), a power supply, and a printer.
Application:
It is suitable for in vitro diagnostic tests in central laboratories, outpatient/emergency laboratories, clinical departments, physical examination centers, and scientific research laboratories of healthcare institutions.
Features:
- 12 independent constant temperature incubation channels, capable of detecting 12 different items simultaneously.
- Automatic detection of reagent card insertion, automatic printing of test results, and automatic card loss handling.
- Built-in thermal printer, with the option to connect an external printer.
- 10.1-inch large LCD screen with a resolution of 1024*600 or higher, providing an enhanced visual experience.
- The temperature range can be manually set to quickly achieve the desired temperature effect and improve the reaction rate.
- Convenient operation with automatic data reading and a single detection time of less than 10 seconds.
Technical Parameters:
Model | BKP2000 |
---|---|
Excitation Light Source | LED |
Wavelength | Excitation wavelength λ0=365nm Detection wavelength λ1=615nm |
Detection Channel | 1 |
Incubation Position | 12 |
Sample Type | Serum, plasma, whole samples, urine, etc. |
Detection Mode | Supports multiple items in one card |
Testing Speed | <10s/test |
Repeatability | CV≤5% |
Stability | σ≤±8% |
Linear Correlation | (r)≥0.98 |
Accuracy | Δn≤±8% |
Display | 10.1-inch color touch screen |
Language | Chinese, English, Spanish, Other languages can be customized |
Interface | RS232, USB, Ethernet port |
Printer | Built-in thermal printer |
Power Supply | 100~240V, 50/60Hz |
External Size (LWH)mm | 333418408 |
Net Weight (kg) | 17 |
Package Size (LWH)mm | 600520687 |
Gross Weight (kg) | 36.5 |
