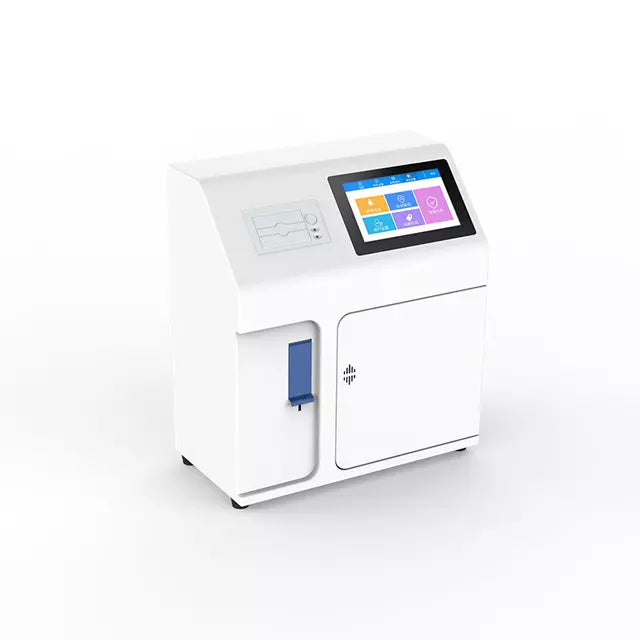

Electrolyte Analyser

Electrolyte Analyser

Regular price $0.00
Regular price Sale price $0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

Features:

●The software supports automatic potential tracking correction to ensure stable performance

●Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy

●Wave flushing and pipeline flushing can avoid blockage and cross-contamination

●Power-off protection, can protect data storage, the result can be stored up to 50,000

●Low consumption, effectively reducing the cost of consumables

●7-inch high-definition touch screen, comprehensive content display

●With the function of automatic fault alarm and elimination, improve work efficiency


Parameters:

Model

BKE-A/B/C/D

BKE-E/F/L

Sample

Serum, plasma,, cerebrospinal fluid and dilute urine

Measuring Speed

≤25s

Analysis Method

Ion selective electrode (ISE)

Sample Volume

60~150μl

200μl

Sample Position

30 sample positions, 5 emergency positions,(Only for BKE-B/D/F/L)

Injection mode

Manual or automatic injection can be selected(Only for BKE-B/D/F/L), BKE-A/C/E is manually injection

Storage

Up to 50,000 test results

Printer

Build-in thermal printer

Interface

RS232 port for LIS

Display

7-inch high-definition touch screen

Language

Chinese and English, other languages can be customized

Calibration

Automatic and Manual calibration

Other Function

Sample volume detection

Power Supply

AC110~240V,50/60Hz, 70VA

Temperature

+10~+40℃

Relative Humidity

≤ 80 %

Atmospheric Pressure

86~106 kPa

Model

BKE-A

BKE-B

BKE-C

Test Items

K+, Na+, Cl-

K+, Na+, Cl-

K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH

Sample Tray

No

Yes

No

External Size(W*D*H)

405*214*471mm

6628*287*471mm

405*214*471mm

Net Weight

12.48

15.11

12.48

Package Size(W*D*H)

Instrument:500*390*530mm

Reagent:220*160*120, 220*160*120

Instrument:390*500*720 mm

Reagent:220*160*120, 220*160*120

Instrument:390*500*530 mm

Reagent:220*160*120, 220*160*120

Gross Weight

Instrument:16.08

Reagent:1.7, 0.9

Instrument:19.31

Reagent:1.7, 0.9

Instrument:16.08

Reagent:1.7, 0.9

Model

BKE-D

BKE-E

BKE-F

Test Items

K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH

K+, Na+, Cl-, iCa2+, nCa2+,TCa2+, pH, TCO2, AG

K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG

Sample Tray

Yes

No

Yes

External Size(W*D*H)

682*287*471

405*214*471

682*287*471

Net Weight

11.9kg

13.13

15.76

Package Size(W*D*H)

Instrument:500*390*720

Reagent:220*160*120,
220*160*120

Instrument:500*390*530

Reagent:280*135*210,
220*160*120

Instrument:500*390*720

Reagent:280*135*210,
220*160*120

Gross Weight

Instrument:19.31

Reagent:1.7, 0.9

Instrument:16.73

Reagent:2.2, 1.2

Instrument:19.96

Reagent:2.2, 1.2

Model

BKE-L


Test Items

K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH, TCO2, AG, Li+, Mg2+

Sample Tray

Yes

External Size(W*D*H)

682*287*471

Net Weight

15.76

Package Size(W*D*H)

Instrument:500*390*720

Reagent:280*135*210,
220*160*120

Gross Weight

Instrument:19.96

Reagent:2.2, 1.2

Items

Measuring Range

Resolution

K+

0.5-20.0mmol/L

0.01 mmol/L

Na+

15-200mmol/L

0.01 mmol/L

Cl-

15-200mmol/L

0.01 mmol/L

Ca2+

0.1-6.0mmol/L

0.01 mmol/L

pH

4-9pH

0.01 pH

TCO2

2.0-70.0mmol/L

0.1 mmol/L

Li+

0.1-6.0mmol/L

0.01 mmol/L

Mg2+

0.1-4.0mmol/L

0.01 mmol/L
