Class II B2 Biological Safety Cabinet

Class II B2 Biological Safety Cabinet

Regular price $0.00
Regular price Sale price $0.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

BSC is a kind of necessary equipment in laboratories of microbiology, biomedical science, genetic recombination, animal experiment, and biological products. It plays a significant role especially in the occasion where protective actions are needed for operators, such as healthcare, pharmaceutical analysis and biomedical research. This equipment provides a germ-free and dust-free working environment during bacterial culture.

Advantage:

1. Time reserve function.
2. Motorized front window.
3. ULPA filter life and UV life indicator.
4. Automatic air speed adjustable with filter block.
5. With memory function in case of power-failure.
6. Work area surrounded by negative pressure, it can ensure maximum safety in work area.
7. Most accessories are standard, which saves your money. There is no need to pay more.
8. Audio and visual alarm (filter replacement, window over height, abnormal air flow velocity, etc).
9. Remote control. All functions can be realized with it, making the operation much easier and more convenient.
10. Interlock function: UV lamp and front window; UV lamp and blower, fluorescent lamp; blower and front window.

11. Foot switch. Adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.


Models:



Model

BSC-1100IIB2-X

BSC-1300IIB2-X

BSC-1500IIB2-X

BSC-1800IIB2-X

External Size

(W*D*H)

1100*775*2250mm

1300*775*2250mm

1500*775*2250mm

1800*775*2250mm

Internal Size

(W*D*H)

940*600*660 mm

1150*600*660 mm

1350*600*660mm

1625*600*660 mm

Tested Opening

Safety Height 200 mm(8")

Max Opening

440mm

Inflow Velocity

0.53±0.025 m/s

Down flow Velocity

0.33±0.025 m/s

ULPA Filter

Two, 99.9995% efficiency at 0.12 μm,filter life indicator.

Front Window

Motorized,two-layer laminated toughened glass ≥ 6mm,anti UV.

Noise

≤ 65 dB

UV Lamp

30W*1

30W* 1

40W* 1

40W*1

UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination.

LED Lamp

12W*2

14W*2

16W*2

16W*2

Illumination

≥1000Lux

Consumption

1300W

1300W

1300W

1300W

Waterproof Sockets

Two, total load of two sockets: 500W

Display

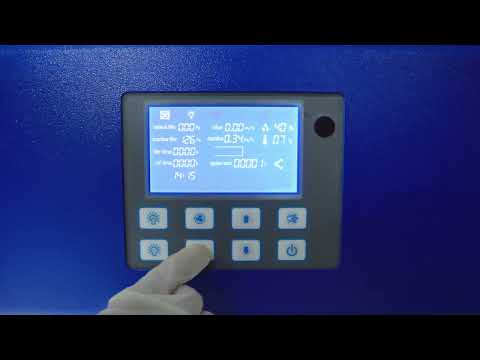

LCD display: exhaust filter and downflow filter pressure, filter and UV lamp working time,inflow and downflow velocity, filter life, humidity and temperature, system working time etc.

Control System

Microprocessor

Airflow System

0% air recirculation, 100% air exhaust

Alarm

Abnormal airflow velocity; Filter replacement; Front window at unsafe height.High filter pressure alarm, abnormal power failure

Exhaust Duct

4 meters PVC duct, Diameter:300mm

Material

Work Zone: 304 stainless steel

Main Body: Cold-rolled steel with anti-bacteria powder coating.

Work Surface Height

750mm(Size can be customized according to requirements )

Caster

Foot master caster

Power Supply

AC 220V  50/60Hz; 110V  60Hz

Standard Accessory

LED lamp*2, UV lamp*1, base stand, Remote control, Foot switch, Exhaust blower, Exhaust duct, Drain valve, Waterproof sockets*2

Optional Accessory

Water and gas tap, Electric height adjustable base stand, Armrest

Gross Weight

243kg; 52kg

282kg; 64kg

300kg; 64kg

408kg; 64kg

Package

Main Body

1230*1060* 1840 mm

1430*1060*1840 mm

1630*1060*1840 mm

1930*1060*1840 mm

Exhaust Blower (W*D*H)

930* 800* 700 mm

930* 860* 740 mm

930* 860* 740 mm

930* 860* 740 mm
