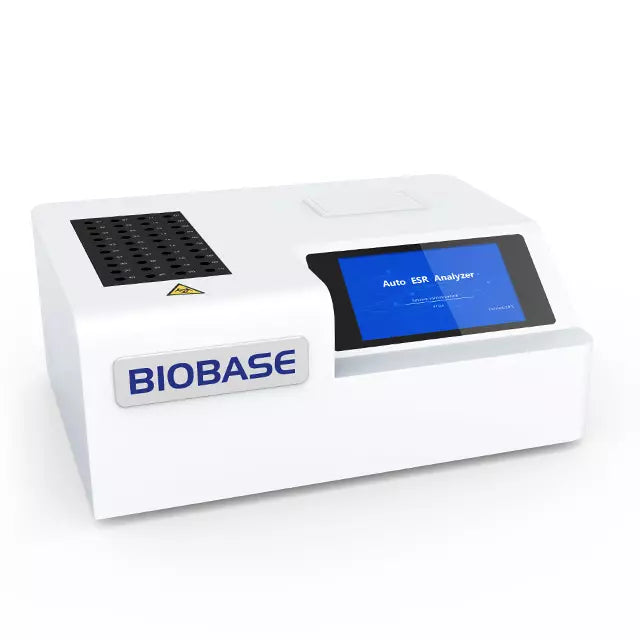

Auto ESR Analyzer BK-ESR20, BK-ESR40
Auto ESR Analyzer BK-ESR20, BK-ESR40
Regular price
$0.00
Regular price
Sale price
$0.00
Unit price
/
per
Shipping calculated at checkout.
Request Quote
Couldn't load pickup availability
ESR testing has important guiding significance for many clinical diseases, but the traditional standard Westergren method has complicated operation, low work efficiency, and large cross-contamination. The Automatic ESR analyzer uses advanced infrared light color difference interpretation technology to automatically scan the whole process of red cell sedimentation within 30 minutes for the sample of the vacuum collection tube, and refers to the Westergren method to measure the standard curve to obtain accurate results.
Application:
Applicable to inspection departments, laboratories, research institutes, universities, disease control centers, etc.
Features:
- 7-inch color touch LCD screen, easy to operate, high resolution
- 40 samples/hour (BK-ESR20), 80 samples/hour (BK-ESR40), rapid detection
- Randomly insert sample positions for testing at any time
- Built-in thermal printer for easy data printing
- Results are automatically temperature compensated
- Advanced optical testing principles to overcome reading errors in manual methods
- Power-off save function, automatically saves the test results
Technical Parameters:
| Model | BK-ESR20 | BK-ESR40 |
|---|---|---|
| Application | Erythrocyte sedimentation rate analysis | |
| Measurement Method | Infrared detection | |
| Analysis Result | Westergren ESR value (mm/hour) | |
| Throughput | Maximum 40 tests/hour | Maximum 80 tests/hour |
| Analysis Channels | 20 (load up to 20 samples for analysis at the same time) | 40 (load up to 40 samples for analysis at the same time) |
| Loading Type | Load samples at any time, measure at any time | |
| Analysis Time | 30 minutes or 60 minutes selectable | |
| Sampling Interval | 3 min | |
| Measurement Range | 0~150mm/h | |
| Temperature Compensation | The result is automatically corrected to the result at 18°C | |
| Result Resolution | 1mm/1h and 1mm/2h | |
| Sample Level Range | 46mm~64mm | |
| HCT Range | 0.2~1.0 | |
| Repeatability | 0~10mm/h, SD≤1.5mm/h; >10mm/h, CV≤15% | |
| Channel Consistency | 0~10mm/h, SD≤1.5mm/h; >10mm/h, CV≤15% | |
| Reading Accuracy | 0.2mm | |
| Coincidence | ≥90% | |
| Display | 7-inch color LCD touch screen | |
| Communication Interface | RS232 serial interface | |
| Printer | Built-in thermal printer | |
| Power Supply | AC100~240, 220V, 50/60Hz | |
| External Size (W* D*H) | 260230190mm | 360300180mm |
| Net Weight | 4.9kg | 7.3kg |
| Package Size (W* D*H) | 310270340mm | 395335375mm |
| Gross Weight | 7.2kg | 10kg |
