Introducing the Aqua Vitae Max Digital Rotary Evaporator, the ultimate solution for efficient and gentle solvent evaporation. Designed specifically for removing solvents like ethanol from winterized crude oil, this powerful system ensures maximum productivity while maintaining user safety.
Equipped with advanced safety features, the Aqua Vitae Max prioritizes the well-being of its users. With cTUVus and CE ratings, safety-coated glassware, and temperature overheat protection, you can have peace of mind during operation. The system also includes run-dry protection, automatically shutting off if there's no water or oil in the heating bath, as well as an automatic motor lift that secures the evaporating flask in case of power failure.
The Aqua Vitae Max Digital Rotary Evaporator is an essential tool for the efficient and gentle evaporative removal of solvents such as ethanol from winterized crude oil.
The system is highly efficient and easy to use. The bath temperature of up to 180°C covers all common solvents and even allows for in-evaporator decarboxylation if required.
- cTUVus and CE rated
- Safety-coated glassware to protect users in case of glass breakage
- Temperature overheat protection at 220°C
- Run-dry protection automatically powers off if operating without any water/oil in the heating bath
- The automatic motor lift releases the evaporating flask to a safe position in case of power failure
Features & Benefits:
- Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
- 5L heating bath with a wide temperature range from room temp. to 180°C with water/oil heating mode
- Speed range of 20 to 280 rpm with clockwise and anti-clockwise rotation

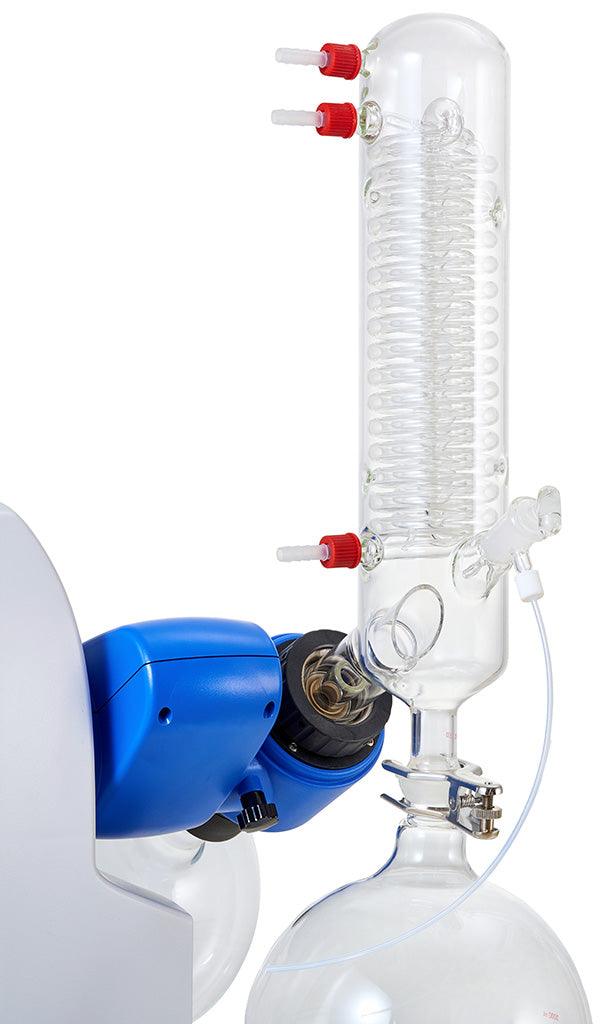

- Patented condenser (cooling surface 1,700 cm2 ) with excellent cooling thus solvent recovery performance
- The flask release mechanism ensures easy removal of the evaporating flask
- A patented double spring sealing ring made of PTFE provides superior sealing performance
- Remote control function via PC control including data transmission
||Aqua Vitae Max 5L
|HGS SKU Number
|Evaporation Flask Volume
||Up to 5 litres
|Water Bath Volume
||External Rotor Brushless Motor
|Speed Range [rpm]
|Reversible Direction of Rotation
|Temperature Range [°C]
|Heat Control Accuracy[°C]
||Water: ±1°C Oil: ±3°C
|Heat Output [W]
|Dimensions [DxWxH, mm]
||19.58 kg / 43.17 lbs
|Ambient Temperature [°C]
|Protection Class acc. to DIN 60529
