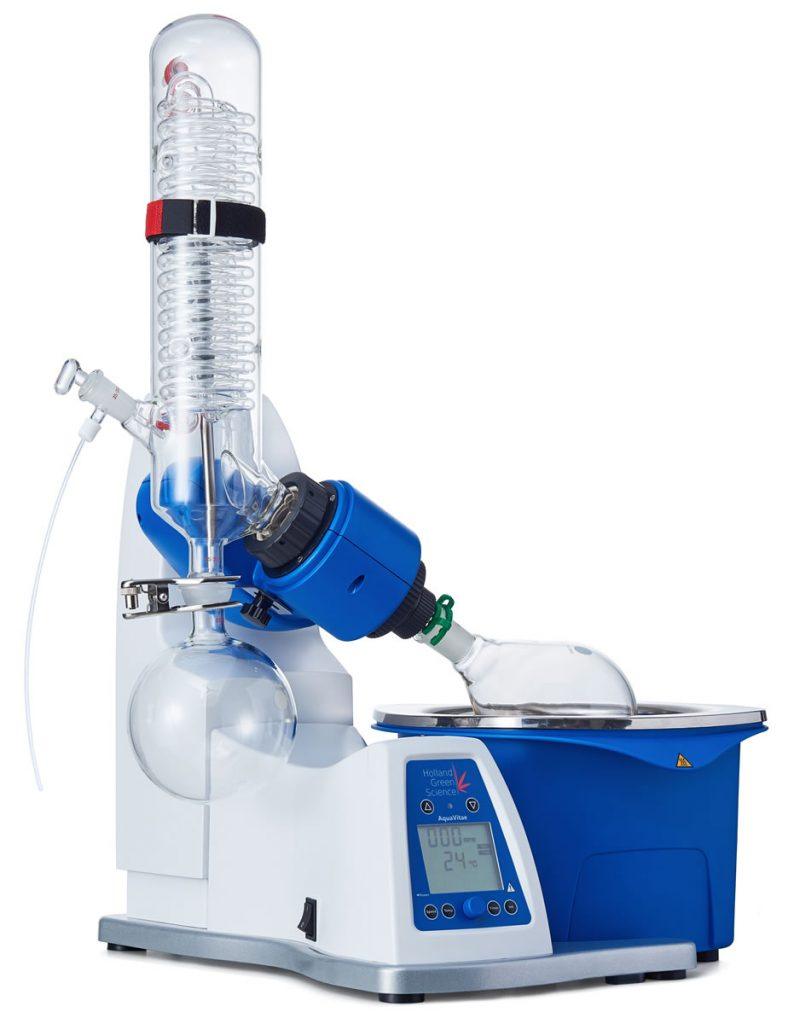

Introducing the Aqua Vitae Digital Rotary Evaporator, the ultimate solution for efficient and gentle solvent evaporation. Designed specifically for removing solvents like ethanol from winterized crude oil, this state-of-the-art system offers unmatched performance and user-friendly operation.
Safety is a top priority with the Aqua Vitae Digital Rotary Evaporator. It is cTUVus and CE-rated, ensuring compliance with rigorous safety standards. The glassware is safety coated to protect users in the event of glass breakage. Temperature overheat protection and run-dry protection provide added safety measures, automatically shutting off the system in case of extreme temperatures or lack of water/oil in the heating bath. Additionally, the automatic motor lift feature releases the evaporating flask to a safe position in the event of a power failure.
Description
The Aqua Vitae Digital Rotary Evaporator is an essential tool for the efficient and gentle evaporative removal of solvents such as ethanol from winterized crude oil.
The system is highly efficient and easy to use. The bath temperature of up to 180°C covers all common solvents and even allows for in-evaporator decarboxylation if required.
Safety:
- cTUVus and CE rated
- Safety-coated glassware to protect users in case of glass breakage
- Temperature overheat protection at 220°C
- Run-dry protection automatically powers off if operating without any water/oil in the heating bath
- The automatic motor lift releases the evaporating flask to a safe position in case of power failure
Features & Benefits:
- Digital display of both rotation speed and heating temperature allows for optimal control of all distillation processes
- 5L heating bath with a wide temperature range from room temp. to 180°C with water/oil heating mode
- Speed range of 20 to 280 rpm with clockwise and anti-clockwise rotation
- Patented condenser (cooling surface 1,700 cm2 ) with excellent cooling thus solvent recovery performance
- The flask release mechanism ensures easy removal of the evaporating flask
- A patented double spring sealing ring made of PTFE provides superior sealing performance
- Remote control function via PC control including data transmission
Technical details
| |
Aqua Vitae 2L
|
| HGS SKU Number |
10206003 |
| Evaporation Flask Volume |
2 liters |
| Water Bath Volume |
5 liters |
| Power Specification |
100-120V 50Hz/60Hz 1ph – 1400W |
| Motor Type |
Brushless DC Motor |
| Speed Range |
20-280 rpm |
| Display |
LCD (speed, temperature, time) |
| Clockwise and Anti-Clockwise |
Yes |
| Heating Temperature Range |
ambient. to 180 °C |
| Control Accuracy |
water: ±1 °C oil: ±3 °C |
| Heating Power |
1300W |
| Timer |
Yes |
| Time Setting Range |
1 -999 min |
| Dimension[D×W×H] |
465 × 457 × 583 mm |
| Weight |
19.44 kg / 42.86 lbs |
| Permissible Ambient Temperature |
5 – 40 °C |
| Permissible Relative Humidity |
80% RH |
| Protection Class |
IP 20 |
| USB Interface |
Yes |
