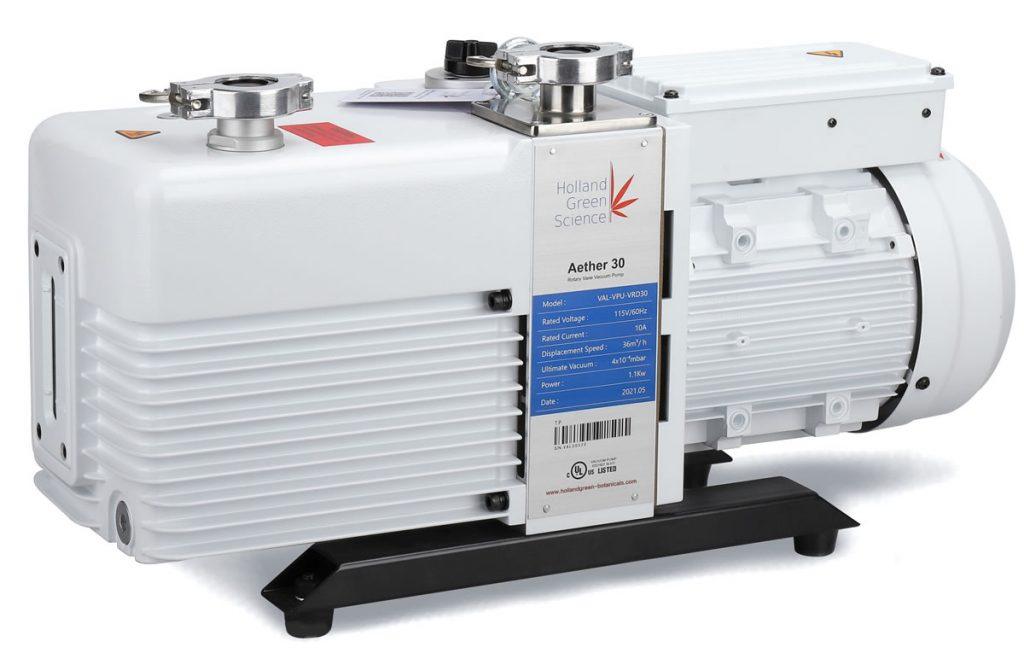

Introducing the Aether series Vacuum Pump, a powerful and reliable solution for your low vacuum needs. This high-speed, motor direct drive, dual-stage oil-sealed rotary vane pump is designed to handle inactive gases and a small amount of non-condensable gas with ease. With its impressive features and benefits, the Aether series Vacuum Pump ensures efficient and smooth operation for various applications.
With a high flow rate and low ultimate pressure, this vacuum pump delivers exceptional performance. Thanks to its low noise level and no oil spray/leaks, it provides a quiet and clean working environment. Maintenance is a breeze, as the Aether series Vacuum Pump is easy to maintain and comes with pump oil, ensuring continuous operation without interruptions.
Description
The Aether series Vacuum Pump is a high speed, motor direct drive, dual-stage oil sealed rotary vane pump. Suitable for use with inactive gases within the scope of low vacuum with a small amount of non-condensable gas
Features
- High Reliability
- High Flow Rate
- Low Ultimate Pressure
- A Low Noise Level
- No Oil Spray / Leaks
- Easy to Maintain
- Comes with Pump Oil
Safety:
- UL and CE rated
- Over-temperature protection
Features & Benefits:
- Adjustable gas ballast valve to optimize vapor tolerance whenever condensable vapor is pumped
- Oil anti-suck back valve to prevent oil contamination of your application with pump oil
- Forced oil circulation system maintains constant oil pressure and supply for better pump life
- Simple maintenance with minimal parts
Technical Details
| Â |
Aether 16 |
Aether 30 |
| HGS SKU Number |
10611004 |
10611005 |
| Power Specification |
110V 60HZ 1ph – 750W |
110V 60HZ 1ph – 1100W |
| Displacement Speed m3/h |
19.2 |
36 |
| Ultimate Partial Pressure Gas Ballast Closed |
(Pa) 0.04 |
(Pa) 0.04 |
| Ultimate Total Pressure Gas Ballast Closed |
(Pa) 0.4 |
(Pa) 0.4 |
| Ultimate Total Pressure Gas Ballast Open |
(Pa) 0.8 |
(Pa) 0.8 |
| Inlet and Exhaust Connection |
KF25 |
KF25/40 |
| Oil Capacity (L) |
0. 9 to 1.5 |
1.3 to 2.0 |
| Ambient Temperature |
10 – 40 °C |
10 – 40 °C |
| Noise Level (dB) |
≤58 |
≤58 |
| Net Weight (kg) |
33 |
43 |
| Dimensions (D x W x L) |
530 x 188 x 272 mm |
567 x 188 x 272 mm |
