316L SST Optional 100C UL Certified 16 CF Vacuum Oven With 6 Heating Shelves

Name: 316L SST Optional 100C UL Certified 16 CF Vacuum Oven With 6 Heating Shelves
Brand: Across International
SKU: AT160-UL
Price: 13421.5 USD
Availability: InStock

$13,421.50

Sale Request for a Quotation

Shipping calculated at checkout.

Request Quote

Power Option 110V 50/60 Hz 220V 50/60Hz

Vacuum Setup KF25 flange port with no pump Ai 110V/220V EasyVac 7cfm oil pump

Calibration No calibration needed ISO/IEC 17025 calibration

Product variants

Quantity

* SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.
* 220V model's door opens from the left.

Introducing the new Across International UL certified 16 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, 2.5X larger internal tubing for a quicker vacuum purge and release, and a secondary door handle to provide a better sealing on the door gasket. Come in 110V or 220V and backed by our 2-year warranty.

The AT160 series digital vacuum oven features a gigantic 16 cubic feet easy-to-clean stainless steel chamber with a large 3/4" tempered glass safety window. With our new internal shelf heating technology, each shelf in these lab and industrial ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.

Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

Features

UL certified

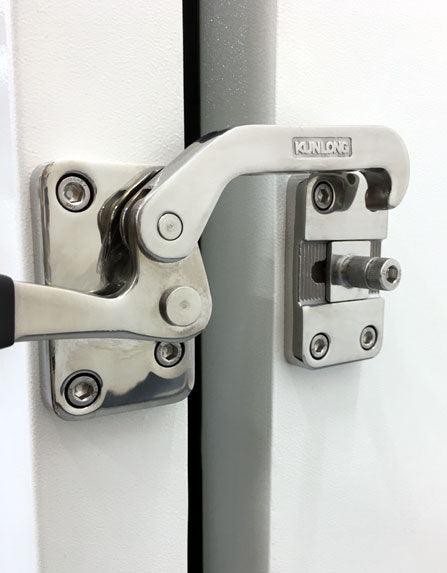

New stainless steel, easy-open handle with tension adjustable latch (110V model).
New re-enforced stainless steel door hinges (110V model).
KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
Thermo-conductive to thermally conductive.
All stainless steel internal vacuum tubing and compression fittings that holds vacuum 10 times longer and deeper than with rubber tubing. They also provide you the most sanitary working environment, while last for decades without maintenance.
Oil-filled mechanical vacuum gauge ensures the most accurate and stable measurements.
Built-in secondary over-temp dial for added protection.
Adjustable vacuum and vent port with needle valves gives you control over vacuum and vent rates, while also largely enhanced durability.
4th gen low proportional gain temperature controller keeps your oven temperature accurate.
Built-in white LED lights
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
Dual layer observation window with 3/4" tempered safety glass.
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
Built-in swivel casters with leveling feet.
For improved temperature ramping, run the auto-tune procedure as outlined in the manual
All ovens shipped from our Nevada or New Jersey locations for quick delivery.
2-year warranty and lifetime US-based parts and service support.
Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
