Trynox Tri-Clamp Stainless Steel Elbow

Name: Trynox Tri-Clamp Stainless Steel Elbow
Brand: Chemseal
SKU: T2CMP1.06
Price: 18.73 USD
Availability: InStock

$18.73

~~$0.00~~ $18.73

Sale Request for a Quotation

Shipping calculated at checkout.

Request Quote

Size 1" 1-1/2" 2" 2-1/2" 3" 4"

Grade 316L 304

Product variants

Quantity

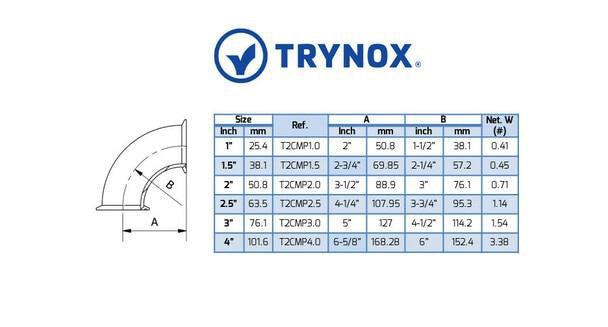

Trynox Sanitary Clamp 90 Degree Elbow, Get Optimal Performance

Our versatile Trynox sanitary clamp 90 degree elbow fits to many different stainless steel tubing clamps to help optimize the results of your fluid operations.

Fits to sanitary stainless steel tubing at both ends
Surface finishing 180 Grit ID/150 Grit OD
Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit ambient temperature
Suitable for use in food, beverage, and other hygienic applications
The tri-clamp elbow is available in both 304 and 316L stainless steel alloys
Available in sizes ranging from 1 inch all the way to 4 inches

When purchasing sanitary fittings, your industry needs the best possible sanitary stainless steel quality. That’s why you should choose Trynox Sanitary Clamp 90 degree Elbow. Direct, control and change the flow of your fluid operation with the best sanitary stainless steel clamps on the integral solutions market.

A-270 Sanitary Tubing Dimensional Tolerances

Tubing

A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD	Wall Thickness	Outside Diameter	Length	Wall
1" (25.4)	0.065" (1.65)/0.049" (1.25)	+/-0.005 (0.13)	+1/8" (3.18)	- 0 +/-10.0%
1-1/2" (38.1)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2" (50.8)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2-1/2" (63.5)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
3" (76.2)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
4" (101.6)	0.083" (2.11)	+/-0.015 (0.38)	+1/8" (3.18)	- 0 +/-10.0%

Sanitary Gaskets General Performance Properties

	Nitrite (Buna)	Fluoro-Elastomer(Viton)	Platinum Cured Silicone Elastomer	Ethylene-Propylene Diene Monomer(EPDM)	PolyTetra Fluoro Ethylene(Teflon)	Tufsteel
Letter Designation	U	SFY	PX	EPDM	G	GTS
Sanitary Gasket Color Code	RED	Yellow & White	Pink	Green	Remains White	Remains Grey
Max Temperature Intermittent	240 F	410 F	580 F	300 F	450 F	578 F
Max Temperature Continuous	210 F	380 F	490 F	260 F	400 F	526 F
Minimum Temperature	-65	-20	-85	-70	-350	-370
USP Class VI	No	Yes	Yes	Yes	Yes	Yes
Steam in Place Performance	Poor	Good	Good	Good	Good	Excellent
Acids, Dilute	Good	Excellent	Good	Good	Excellent	Excellent
Alkalies	Good	Good	Excellent	Excellent	Excellent	Excellent
Alcohol, Glycols	Excellent	Good	Excellent	Excellent	Excellent	Excellent
Animal Oils & Fats	Excellent	Excellent	Good	Fair	Excellent	Excellent
Soaps, Bleaches, Detergents	Fair/Good	Good	Fair	Excellent	Excellent	Excellent
Vegetable Oil	Excellent	Excellent	Excellent	Fair	Excellent	Excellent
Water	Good	Excellent	Good	Excellent	Excellent	Excellent
