Name: Trynox Sanitary Tri-Clamp Heavy Duty
Brand: Chemseal
SKU: T13MH0.54-0.754
Price: 5.21 USD
Availability: InStock

Our Trynox Heavy Duty Sanitary Clamps Are Guaranteed To Get The Job Done Right

Control the pressure and flow of your sanitary fluids operations with Trynox sanitary heavy duty clamp.

Fits to sanitary stainless steel tubing
Surface finishing 180 Grit ID/150 Grit OD
Maximum operating pressure rating of 140 psi at 70 degrees Fahrenheit ambient temperature
Suitable for use in food, beverage, and other hygienic applications
The tri-clamp heavy duty available in only 304 stainless steel alloy

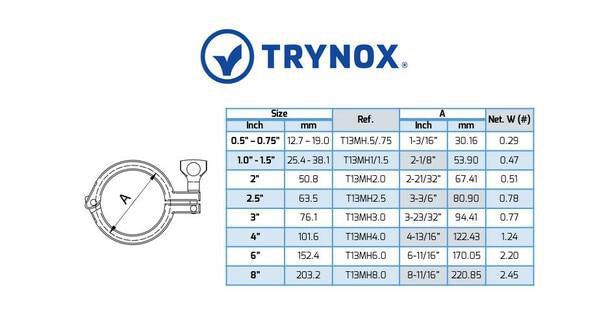

Available in sizes ranging from 1/2 inch all the way to 8 inches

Looking to maintain massive amounts of pressure in your hygienic fluids operations? Our Trynox Sanitary Heavy Duty Clamp can handle the job, thanks to high-quality sanitary stainless steel. With Trynox sanitary heavy duty clamp, you can effectively connect, terminate, control and change the direction of tubing for multiple industry applications. Quality heavy duty sanitary stainless steel clamps are essential to maintaining a good hygienic fluids operation.

A-270 Sanitary Tubing Dimensional Tolerances

Tubing

A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD	Wall Thickness	Outside Diameter	Length	Wall
1" (25.4)	0.065" (1.65)/0.049" (1.25)	+/-0.005 (0.13)	+1/8" (3.18)	- 0 +/-10.0%
1-1/2" (38.1)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2" (50.8)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2-1/2" (63.5)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
3" (76.2)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
4" (101.6)	0.083" (2.11)	+/-0.015 (0.38)	+1/8" (3.18)	- 0 +/-10.0%

Sanitary Gaskets General Performance Properties

	Nitrite (Buna)	Fluoro-Elastomer(Viton)	Platinum Cured Silicone Elastomer	Ethylene-Propylene Diene Monomer(EPDM)	PolyTetra Fluoro Ethylene(Teflon)	Tufsteel
Letter Designation	U	SFY	PX	EPDM	G	GTS
Sanitary Gasket Color Code	RED	Yellow & White	Pink	Green	Remains White	Remains Grey
Max Temperature Intermittent	240 F	410 F	580 F	300 F	450 F	578 F
Max Temperature Continuous	210 F	380 F	490 F	260 F	400 F	526 F
Minimum Temperature	-65	-20	-85	-70	-350	-370
USP Class VI	No	Yes	Yes	Yes	Yes	Yes
Steam in Place Performance	Poor	Good	Good	Good	Good	Excellent
Acids, Dilute	Good	Excellent	Good	Good	Excellent	Excellent
Alkalies	Good	Good	Excellent	Excellent	Excellent	Excellent
Alcohol, Glycols	Excellent	Good	Excellent	Excellent	Excellent	Excellent
Animal Oils & Fats	Excellent	Excellent	Good	Fair	Excellent	Excellent
Soaps, Bleaches, Detergents	Fair/Good	Good	Fair	Excellent	Excellent	Excellent
Vegetable Oil	Excellent	Excellent	Excellent	Fair	Excellent	Excellent
Water	Good	Excellent	Good	Excellent	Excellent	Excellent
