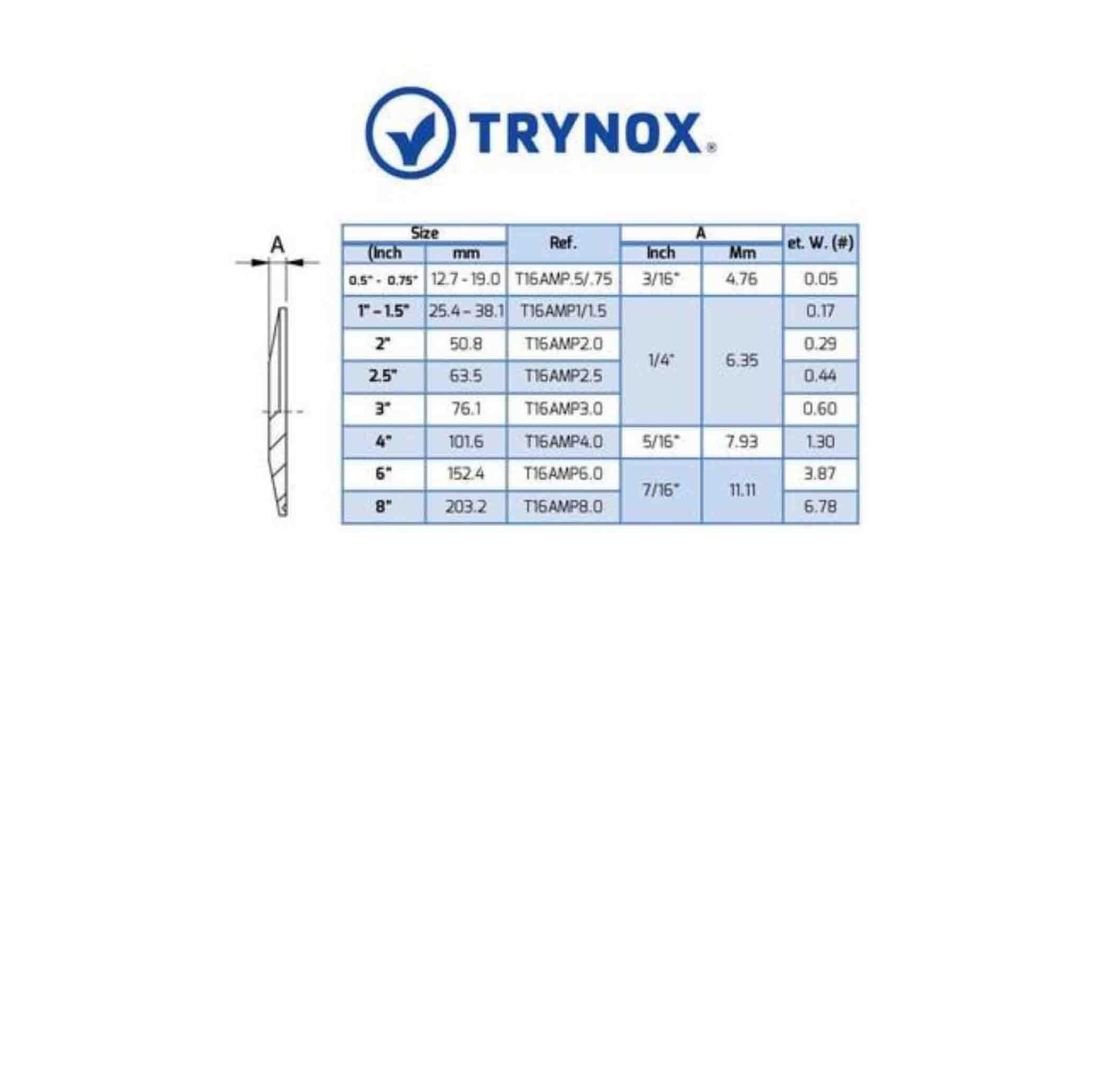

Trynox Sanitary Tri-Clamp End Cap
Trynox Sanitary Tri-Clamp End Cap
Couldn't load pickup availability
Keep Your Hygienic Fluids Under Control With A Tri Clamp End Cap
Keeping your fluids contained in your sanitary operation is of utmost importance. Trynox Sanitary Tri-Clamp End Cap to assist with this.
- Fits to sanitary stainless steel tubing
- Surface finishing 180 Grit ID/150 Grit OD
- Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit ambient temperature
- Suitable for use in food, beverage, and other hygienic applications.
- The solid tri-clamp end cap is available in both 304 and 316L stainless steel alloys
- Available in sizes ranging from 1/2 inch all the way to 8 inches
Trust SC Filtration for your hygienic fluids processes, because we have decades of industry experience in providing a host of sanitary fitting solutions. With fittings that are available as threaded or unthreaded, including a variety of sizes, we have the integral solutions for your business. We understands that you require the highest possible levels of sanitation in your fluid operations. Our variety of sanitary stainless steel fittings and Trynox Sanitary Tri-Clamp End Caps will help you get the job done right, every time.
Keep Your Hygienic Fluids Under Control With A Tri-Clamp End Cap Keeping your fluids contained in your sanitary operation is of utmost importance. Trynox Sanitary Tri-Clamp End Cap to assist with this. Fits to sanitary stainless steel tubing Surface finishing 180 Grit ID/150 Grit OD Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit ambient temperature Suitable for use in food, beverage, and other hygienic applications Available in SS304 & SS316L Sanitary Sizes 1/2" - 8"
A-270 Sanitary Tubing Dimensional Tolerances
Tubing
A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)
For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx
All dimensions in inches (mm)
Size OD |
Wall Thickness |
Outside Diameter |
Length |
Wall |
1" (25.4) |
0.065" (1.65)/0.049" (1.25) |
+/-0.005 (0.13) |
+1/8" (3.18) |
- 0 +/-10.0% |
1-1/2" (38.1) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
2" (50.8) |
0.065" (1.65)/0.049" (1.25) |
+/-0.008 (0.20) |
+1/8" (3.18) |
- 0 +/-10.0% |
2-1/2" (63.5) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
3" (76.2) |
0.065" (1.65) |
+/-0.010 (0.25) |
+1/8" (3.18) |
- 0 +/-10.0% |
4" (101.6) |
0.083" (2.11) |
+/-0.015 (0.38) |
+1/8" (3.18) |
- 0 +/-10.0% |
Sanitary Gaskets General Performance Properties
|
|
Nitrite (Buna) |
Fluoro-Elastomer(Viton) |
Platinum Cured Silicone Elastomer |
Ethylene-Propylene Diene Monomer(EPDM) |
PolyTetra Fluoro Ethylene(Teflon) |
Tufsteel |
Letter Designation |
U |
SFY |
PX |
EPDM |
G |
GTS |
Sanitary Gasket Color Code |
RED |
Yellow & White |
Pink |
Green |
Remains White |
Remains Grey |
Max Temperature Intermittent |
240 F |
410 F |
580 F |
300 F |
450 F |
578 F |
Max Temperature Continuous |
210 F |
380 F |
490 F |
260 F |
400 F |
526 F |
Minimum Temperature |
-65 |
-20 |
-85 |
-70 |
-350 |
-370 |
USP Class VI |
No |
Yes |
Yes |
Yes |
Yes |
Yes |
Steam in Place Performance |
Poor |
Good |
Good |
Good |
Good |
Excellent |
Acids, Dilute |
Good |
Excellent |
Good |
Good |
Excellent |
Excellent |
Alkalies |
Good |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Alcohol, Glycols |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
Excellent |
Animal Oils & Fats |
Excellent |
Excellent |
Good |
Fair |
Excellent |
Excellent |
Soaps, Bleaches, Detergents |
Fair/Good |
Good |
Fair |
Excellent |
Excellent |
Excellent |
Vegetable Oil |
Excellent |
Excellent |
Excellent |
Fair |
Excellent |
Excellent |
Water |
Good |
Excellent |
Good |
Excellent |
Excellent |
Excellent |
