Trynox Sanitary Tri Clamp Concentric Reducer

Trynox Sanitary Tri Clamp Concentric Reducer

Regular price $33.95
Regular price Sale price $33.95
Sale Sold out
Shipping calculated at checkout.
Request Quote
Size
Grade

Reduce Your Tube Size From A Larger To A Smaller Bore

Chemseal’s Trynox Sanitary Clamp Concentric Reducer will keep your fluid processes hygienic and efficient due to our high-quality stainless steel.

  • Fits to sanitary stainless steel tubing at both ends
  • Surface finishing 180 Grit ID/150 Grit OD
  • Maximum operating pressure rating of 200 psi at 70 degrees Fahrenheit ambient temperature
  • Suitable for use in food, beverage, and other hygienic applications
  • Reduce process line outside diameter with tri-clamp connection
  • The tri-clamp concentric reducer is available in both 304 and 316L stainless steel alloys

Look no further for a high-quality sanitary clamp concentric reducer, because Chemseal has you covered. Reducing your tube size from a larger to a smaller bore will help you direct, control and change the flow of your fluid operation with the best sanitary stainless steel clamps on the integral solutions market. Chemseal has nearly every possible solution for the sanitary stainless steel fittings market, and our Trynox Sanitary Clamp Concentric Reducer is no exception.

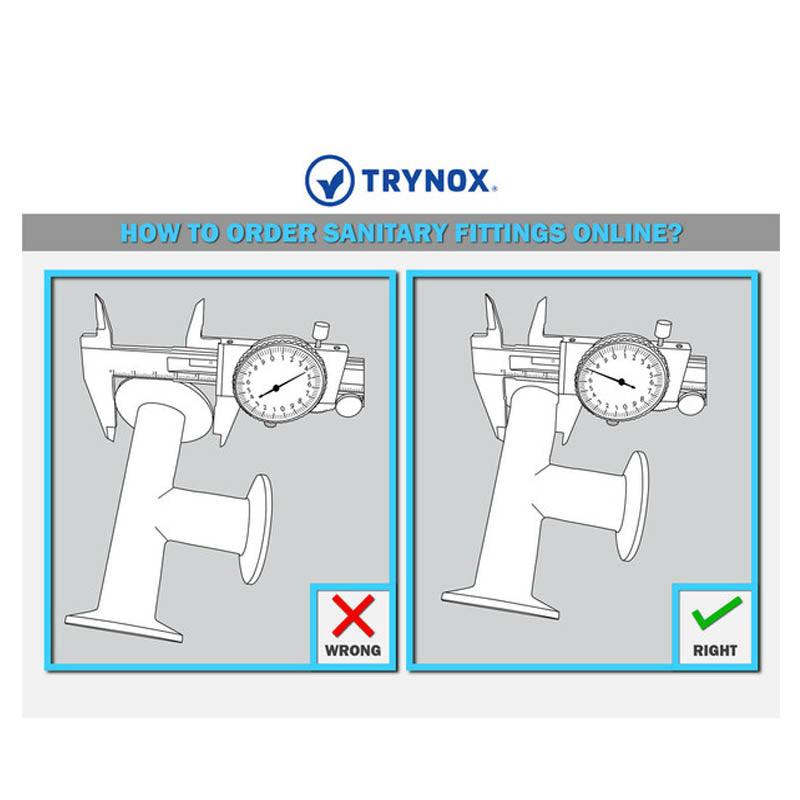

Tri-Clamp Fittings and Gasket Sizing Guide

Sanitary Fitting Dimensions



Sanitary Size OD of Flange End ID of Tube OD of Tube
1/2″ 0.992 0.370 0.500
3/4″ 0.992 0.620 0.750
1″ 1.984 0.870 1.000
1 1/2″ 1.984 1.370 1.500
2″ 2.516 1.870 2.000
2 1/2″ 3.047 2.370 2.500
3″ 3.579 2.870 3.000
4″ 4.682 3.834 4.000
6″ 6.562 5.782 6.000
8″ 8.602 7.782 8.000
