Name: Trynox Sanitary Clamp Gasket
Brand: Chemseal
SKU: TGC0.50B 1
Price: 0.84 USD
Availability: InStock

Provides A Leak-Resistant Seal On A Pipe Union

Trynox Sanitary Clamp Gasket ensures that your fluid operations are sealed tight through a range of gasket materials that we offer.

Fits to sanitary stainless steel tubing
Made of different elastomeric materials depending on the product temperature
Maximum operating pressure rating of 140 psi at 70 degrees Fahrenheit ambient temperature
Suitable for use in food, beverage, and other hygienic applications

SC Filtration carries Trynox Sanitary Clamp Gaskets to properly seal pipe unions by sealing to a tube or hose fitting by a flange. Choose from Buna, EPDM, Viton, PTFE or Silicone materials to find the right match for your sanitary fluids purposes. We also carrie a host of other sanitary stainless steel fittings. Even the cheap parts are crucially important for your hygienic fluids operation.

SPECS:

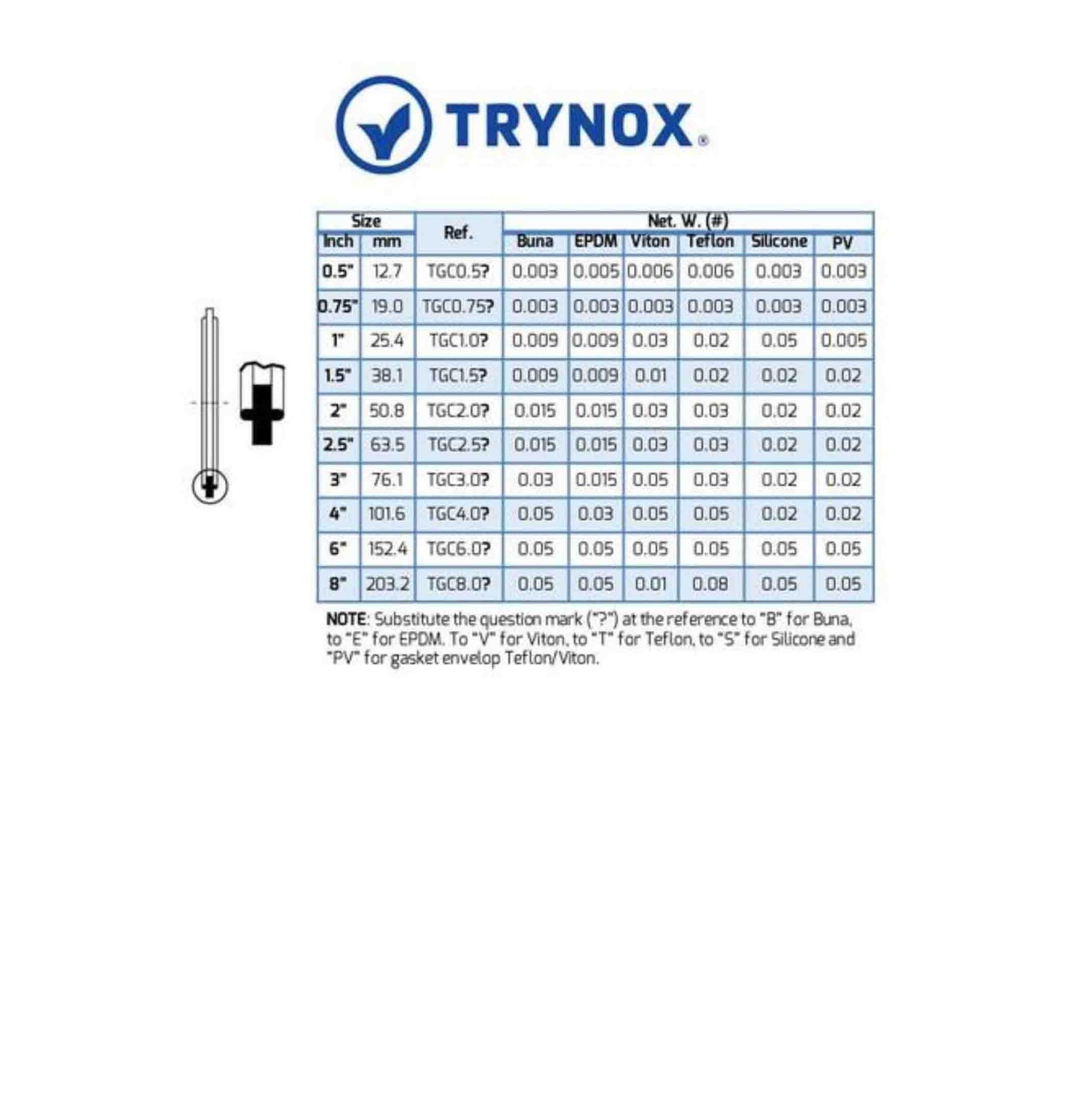

Trynox TGC series sanitary clamp gasket
Buna, EPDM, Viton, PTFE or Silicone material
.5”, .75”, 1”, 1.5”, 2”, 2.5”, 3”, 4”, 6” and 8” sizes

A-270 Sanitary Tubing Dimensional Tolerances

Tubing

A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)

For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)

Size OD	Wall Thickness	Outside Diameter	Length	Wall
1" (25.4)	0.065" (1.65)/0.049" (1.25)	+/-0.005 (0.13)	+1/8" (3.18)	- 0 +/-10.0%
1-1/2" (38.1)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2" (50.8)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2-1/2" (63.5)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
3" (76.2)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
4" (101.6)	0.083" (2.11)	+/-0.015 (0.38)	+1/8" (3.18)	- 0 +/-10.0%

Sanitary Gaskets General Performance Properties

	Nitrite (Buna)	Fluoro-Elastomer (Viton)	Platinum Cured Silicone Elastomer	Ethylene-Propylene Diene Monomer(EPDM)	PolyTetra Fluoro Ethylene(Teflon)	Tufsteel
Letter Designation	U	SFY	PX	EPDM	G	GTS
Sanitary Gasket Color Code	RED	Yellow & White	Pink	Green	Remains White	Remains Grey
Max Temperature Intermittent	240Deg F	410 F	580 F	300 F	450 F	578D F
Max Temperature Continuous	210 F	380 F	490 F	260 F	400 F	526 F
Minimum Temperature	-65	-20	-85	-70	-350	-370
USP Class VI	No	Yes	Yes	Yes	Yes	Yes
Steam in Place Performance	Poor	Good	Good	Good	Good	Excellent
Acids, Dilute	Good	Excellent	Good	Good	Excellent	Excellent
Alkalies	Good	Good	Excellent	Excellent	Excellent	Excellent
Alcohol, Glycols	Excellent	Good	Excellent	Excellent	Excellent	Excellent
Animal Oils & Fats	Excellent	Excellent	Good	Fair	Excellent	Excellent
Soaps, Bleaches, Detergents	Fair/Good	Good	Fair	Excellent	Excellent	Excellent
Vegetable Oil	Excellent	Excellent	Excellent	Fair	Excellent	Excellent
Water	Good	Excellent	Good	Excellent	Excellent	Excellent

Tags: buna edpm gasket ptfe sanitary silicone triclamp triclover trynox viton

Size:

Material:

A-270 Sanitary Tubing Dimensional Tolerances

Size OD

Wall Thickness

Outside Diameter

Length

Wall

1" (25.4)

0.065" (1.65)/0.049" (1.25)

+/-0.005 (0.13)

+1/8" (3.18)

- 0 +/-10.0%

1-1/2" (38.1)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2" (50.8)

0.065" (1.65)/0.049" (1.25)

+/-0.008 (0.20)

+1/8" (3.18)

- 0 +/-10.0%

2-1/2" (63.5)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

3" (76.2)

0.065" (1.65)

+/-0.010 (0.25)

+1/8" (3.18)

- 0 +/-10.0%

4" (101.6)

0.083" (2.11)

+/-0.015 (0.38)

+1/8" (3.18)

- 0 +/-10.0%

Nitrite (Buna)

Fluoro-Elastomer

(Viton)

Platinum Cured Silicone Elastomer

Ethylene-Propylene Diene Monomer(EPDM)

PolyTetra Fluoro Ethylene(Teflon)

Tufsteel

Letter Designation

U

SFY

PX

EPDM

G

GTS

Sanitary Gasket Color Code

RED

Yellow & White

Pink

Green

Remains White

Remains Grey

Max Temperature Intermittent

240Deg F

410 F

580 F

300 F

450 F

578D F

Max Temperature Continuous

210 F

380 F

490 F

260 F

400 F

526 F

Minimum Temperature

-65

-20

-85

-70

-350

-370
