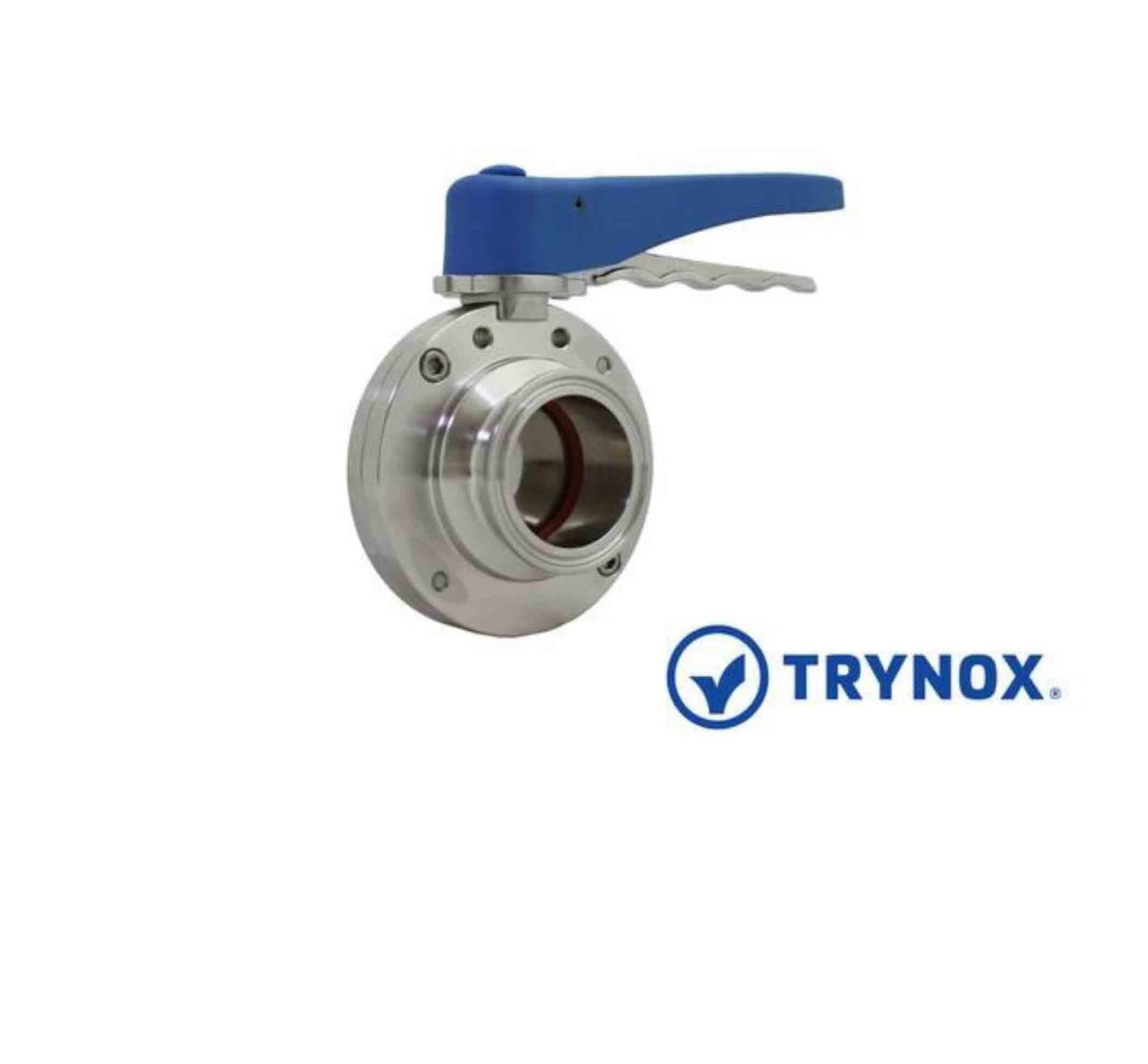

Name: Trynox Sanitary Butterfly Valve Clamp Ends
Brand: Chemseal
SKU: TBVACC1.06VMP
Price: 115.85 USD
Availability: InStock

Butterfly Valve:

is from a family of valves called quarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is a metal disc mounted on a rod. The seal creates a dynamic seal when the disc is rotated into the closed position, the same seat also forms the primary stem seal to prevent seal through the stem.

Sanitary Valves

Valves are process components that provide dynamic seals within the process. Is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways. Valves are technically fittings, but are usually discussed as a separate category. In an open valve, fluid flows in a direction from higher pressure to lower pressure. They also provide seals between the process and the atmosphere.

Take and Maintain Control of Your Sanitary Operation

With Trynox Sanitary Butterfly Valve Clamp Ends, your sanitary fluid operation will be as seamless and regulated as possible, thanks to our quality sanitary stainless steel fittings.

Ultra-slim design
Surface finishing 180 Grit ID/150 Grit OD
Fits to sanitary stainless steel tubing
Many elastomeric combinations (Buna, Silicone, Viton or EPDM)
The clamp butterfly valve is available in both 304 and 316L stainless steel alloys
Available in sizes ranging from 1 inch all the way to 4 inches

Our Trynox Sanitary Butterfly Valve Clamp Ends, are specifically designed to optimize and maintain your sanitary fluid operations. Trynox Sanitary Butterfly Valve Clamp Ends have a maximum operating pressure rating of 140psi (depending on the valve size) at 70 degrees Fahrenheit. Our stainless steel fittings are ideal for nearly any industry.

A-270 Sanitary Tubing Dimensional Tolerances

Tubing

A tube, or tubing, is a long hollow cylinder used for moving fluids (liquids or gases)
For Beverage & Sanitary stainless steel tubing for the Brewery, Food, Dairy and Pharmaceutical Industries must be manufactured in 304L & 316L polished on the ID to 20u-in Ra/OD to 30u-in Ra, Following standards like ASTM A-269; A-270, DIN 11805 or ENxxxxx

All dimensions in inches (mm)


Size OD	Wall Thickness	Outside Diameter	Length	Wall
1" (25.4)	0.065" (1.65)/0.049" (1.25)	+/-0.005 (0.13)	+1/8" (3.18)	- 0 +/-10.0%
1-1/2" (38.1)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2" (50.8)	0.065" (1.65)/0.049" (1.25)	+/-0.008 (0.20)	+1/8" (3.18)	- 0 +/-10.0%
2-1/2" (63.5)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
3" (76.2)	0.065" (1.65)	+/-0.010 (0.25)	+1/8" (3.18)	- 0 +/-10.0%
4" (101.6)	0.083" (2.11)	+/-0.015 (0.38)	+1/8" (3.18)	- 0 +/-10.0%

Sanitary Gaskets General Performance Properties

	Nitrite (Buna)	Fluoro-Elastomer (Viton)	Platinum Cured Silicone Elastomer	Ethylene-Propylene Diene Monomer(EPDM)	PolyTetra Fluoro Ethylene(Teflon)	Tufsteel
Letter Designation	U	SFY	PX	EPDM	G	GTS
Sanitary Gasket Color Code	RED	Yellow & White	Pink	Green	Remains White	Remains Grey
Max Temperature Intermittent	240Deg F	410Deg F	580Deg F	300Deg F	450Deg F	578Deg F
Max Temperature Continuous	210Deg F	380Deg F	490Deg F	260Deg F	400Deg F	526Deg F
Minimum Temperature	-65	-20	-85	-70	-350	-370
USP Class VI	No	Yes	Yes	Yes	Yes	Yes
Steam in Place Performance	Poor	Good	Good	Good	Good	Excellent
Acids, Dilute	Good	Excellent	Good	Good	Excellent	Excellent
Alkalies	Good	Good	Excellent	Excellent	Excellent	Excellent
Alcohol, Glycols	Excellent	Good	Excellent	Excellent	Excellent	Excellent
Animal Oils & Fats	Excellent	Excellent	Good	Fair	Excellent	Excellent
Soaps, Bleaches, Detergents	Fair/Good	Good	Fair	Excellent	Excellent	Excellent
Vegetable Oil	Excellent	Excellent	Excellent	Fair	Excellent	Excellent
Water	Good	Excellent	Good	Excellent	Excellent
