Dual Diaphragm pump for pumping delicate solids such as botanical trichomes. This pump was designed specifically to handle solids. This is the world's first purpose-built pump for Botanical Trichomes. You can move water quickly with this pump without fear of damaging trichomes due to shear, pressure, or temperature. This pump is made of food-grade plastics for the safe handling of the fluid.
Why is this pump special? Watch the discussion here.
Read the pump study here.

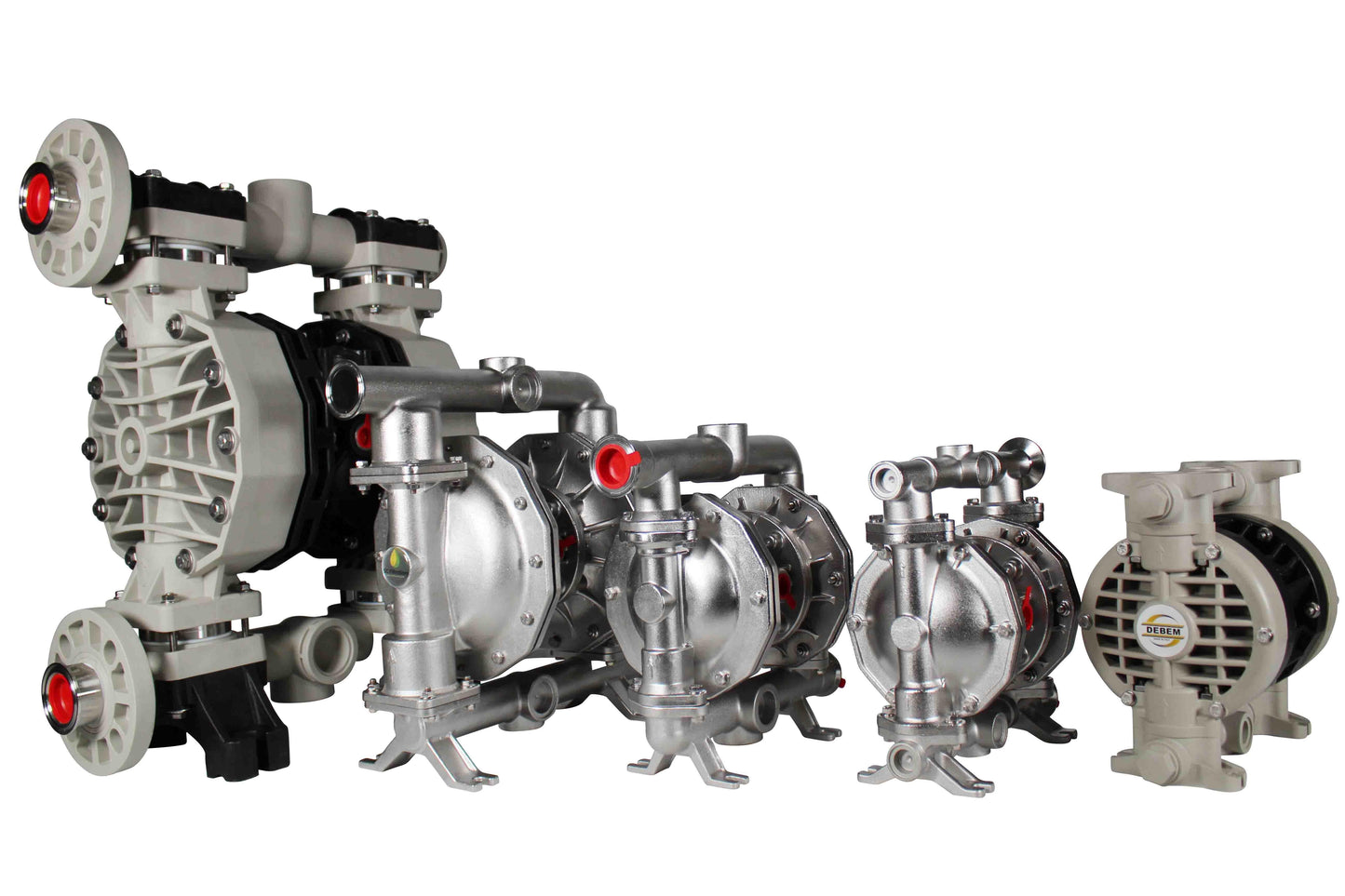

AODD Diaphragm Pump.
- Pump Material: Food Grade Polypropylene
- Size: 1.5"
- Fluid Connection: 1.5" Sanitary Triclamp
- Operating Temperature: -4 Celsius to +65C (24F to 149F)
- Diaphragm Material: Santoprene + PTFE
- Ball Material: PTFE
- Air Inlet: 1/2" BSP
- Air Consumption: 18 CFM Max
- Maximum Solids Passing: 7.5mm
- Displacement: 700CC
- Maximum Delivery: 44 Gallons per minute
- Maximum Head: 80m
- Maximum Suction Dry: 5m
- Maximum Suction Wet: 9.8m
- Made in Italy
Ā Dimensions:
- Length A: 18"
- Width B: 9"
- Height C: 16"
Cart with Pump Dimensions:
- Length: 32"
- Width: 10"
- Height: 21"
