Solventless Mesclatore - Ice Water Extraction

Solventless Mesclatore - Ice Water Extraction

Regular price $34,000.00
Regular price $45,000.00 Sale price $34,000.00
Sale Request for a Quotation
Shipping calculated at checkout.
Request Quote

Our solventless solution is the perfect addition to any industrial lab looking to automate and expand their production capabilities. With swappable trolleys and a computer-controlled system that allows for customizable programs, you can easily adjust the level of agitation to suit your specific needs. Whether you're working with loose biomass or bagged material, our system is designed to gently extract trichomes from flowers and produce high-quality solventless ice water extracts.

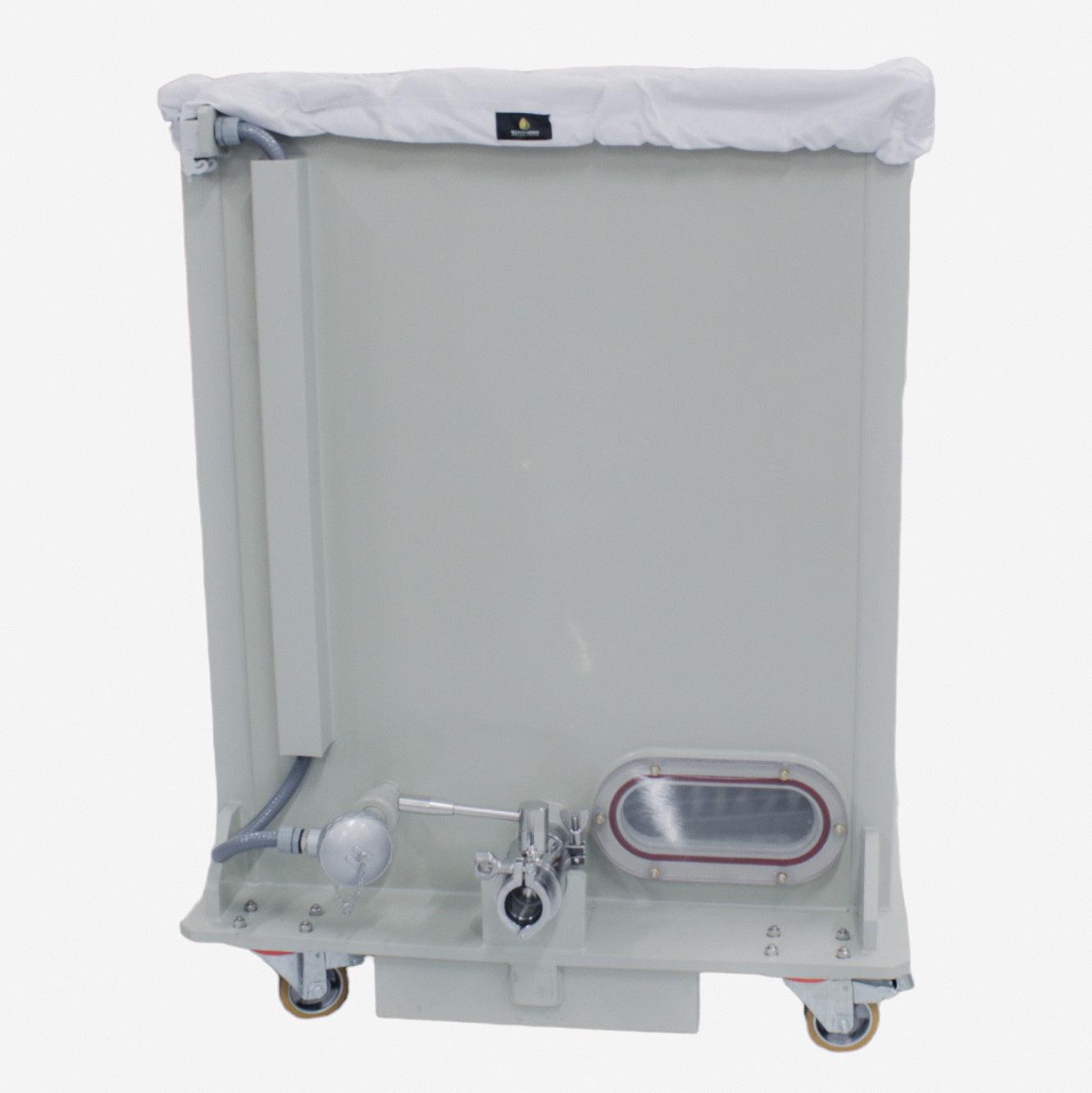

Our trolley system is mounted on casters and made with German polypropylene materials, making it easy to move around your lab and simple to clean and disassemble. It also features a removable lid and low-shear impeller to ensure efficient and gentle extraction. Plus, with an insulated design and no chiller required, you'll save on labor and ice usage.

In addition to these features, our solventless solution also comes equipped with a trichome AODD transfer pump, motorized lift, and fast bagged clean-out system. The large filtering reservoir and programmable touchscreen controller make it easy to transfer and drain your extracts using either gravity or a pump. And with FDA food-grade polypropylene construction, you can be confident in the safety and quality of your end product. Made in Italy, this is the most cost-effective solution for medium and craft labs looking to increase their solventless extract production.

Tank not included. Insulated trolleys are sold separately.

Where it excels:

  • Agitation of biomass to gently remove trichomes from flowers.
  • Loose biomass or bagged.
  • Perfect for medium and craft labs.

Features:

  • Insulated Trolley (Sold Separately)
  • Removable Lid
  • Low shear impeller
  • Mounted on casters
  • German Polypropylene Materials
  • Trichome AODD Transfer Pump (Included)
  • Motorized Lift
  • Fast Bagged Clean-out System


Advantages:

  • Labor savings - one operator needed
  • Easy to clean and disassemble
  • Insulated – Low Ice Usage
  • No Chiller Required
  • Built with FDA Food Grade Polypropylene
  • Large filtering reservoir
  • Programmable Touch Screen Controller
  • Gravity or Pump Drain/Transfer
  • Made in Italy

Optional Features:

  • Additional Trichome Pumps
  • Additional Trolleys
  • Chiller & Heat Exchanger
  • Trichome Filtration
  • Ultrasonic Transducer


Specifications:



Model:

SS 800

Tank Diameter:

 32"

Capacity:

100 Gallons

Dimensions mm (LxWxH):

 1630 x 1210 x 2340mm

Weight:

Kg. 350

Recommended Compressor:

5HP 17.9 CFM @ 100 PSI

Compressed Air Pressure:

From 25 to 100 PSI

Compressed Air Pressure Consumption:

5.6-42.3 CFM

Noise Level:

70 dB

Electrical:

230V 60Hz 1 Phase

Operating Temperature:

0 F to 160F

Maximum Flow Rate:

29 GPM

Fresh Frozen Wet Capacity per batch

20,000 Grams

Ultrasonic Transducer not included. Trolley not included. Soaker lid not included.
