Description

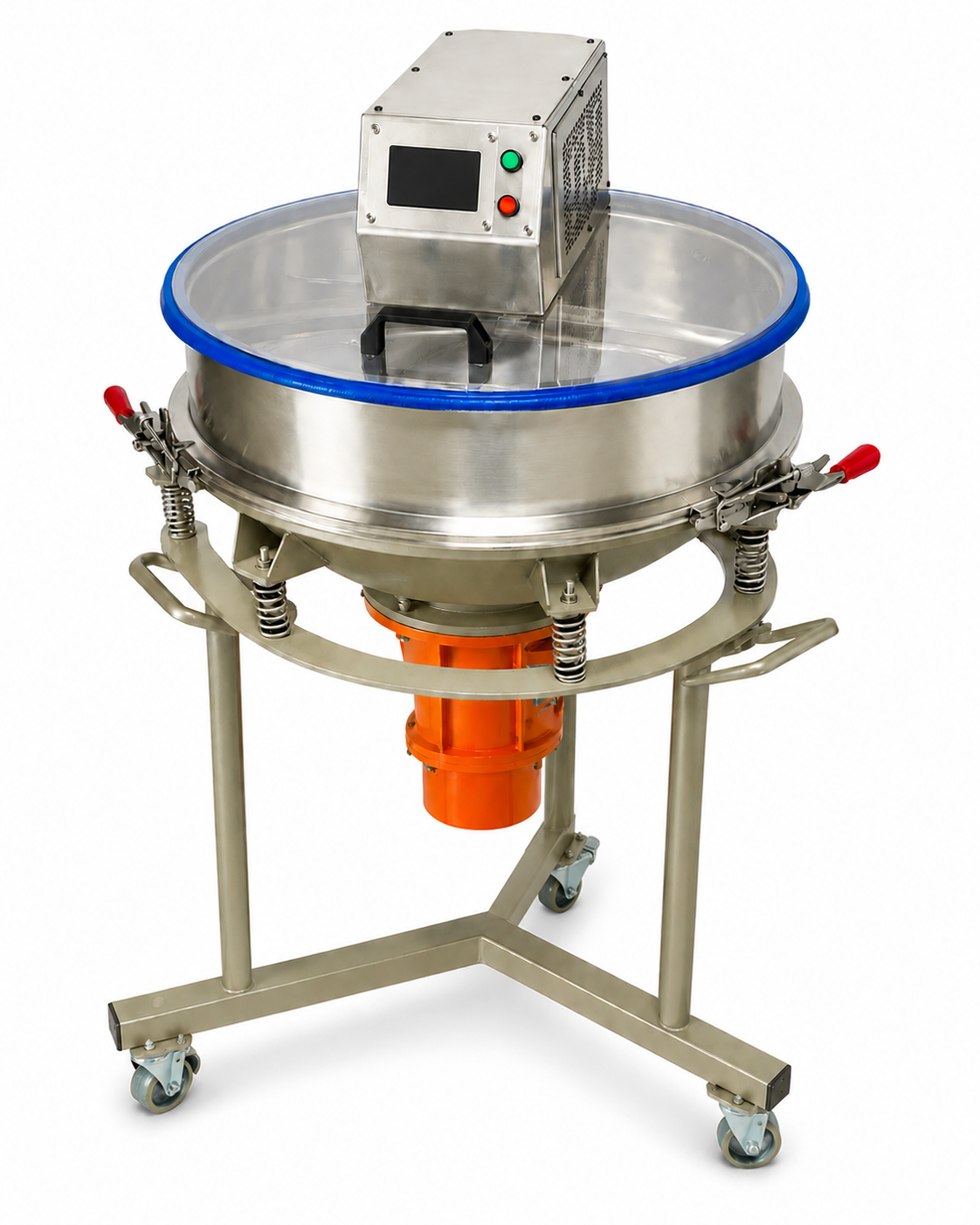

The PTK – Plasmastatic Trichome Kamikaze is a 24" vibratory separator/sifting system mounted on a mobile pedestal, built entirely from 304 stainless steel with a mirror finish inside (for maximum release and cleanliness) and a 2B finish outside. It is purpose-built for the final stage of the workflow: polishing and refining trichomes after they come off the Plasmastatic process. Once the Plasmastatic step has separated the trichome heads, the PTK takes that material and dry-sifts it through a graduated set of food-grade 316 stainless steel screens to polish the heads, strip residual plant matter and stalks, and classify the final product by exact particle size — delivering clean, uniform, presentation-grade trichomes.
Its stacked-frame design with quick-release clamp rings lets operators swap screens and clean the unit in seconds, tool-free, so you can step the material down through multiple micron grades in a single run. The 4" bottom discharge and sanitary BFM ports allow clean, contained connection to your process line, and the wheeled pedestal with integrated control box makes it mobile and production-ready.
Specifications
Main assembly (CSTM-SC-24LP-W/STAND)
| Parameter | Specification |
|---|---|
| Working diameter | 24" |
| Material | 304 stainless steel |
| Finish | Mirror (inside) / 2B (outside) |
| Blank frames | 2 ea, quick-release clam rings |
| Bottom frame | 4" dia. bottom discharge, standard clamp ring |
| Motor | 1/3 HP, 1800 RPM, 3-phase, 230/460 V |
| Control | ON/OFF–STOP control box, pedestal-mounted |
| Mounting | Mobile pedestal |
Top cover assembly (CSTM-SC-24DC-6BFM)
| Parameter | Specification |
|---|---|
| Cover | Quick-release clamp ring with outer-ring seal gasket |
| Inlet port | 1 × 4" BFM spigot |
| Inspection port | 1 × 6" BFM spigot with BFM blank cap |
| Finish | Mirror (inside) / 2B (outside) |
Available screens (24", 316 stainless steel, FDA epoxy bonding, new gasket included)
| Mesh | Opening (in) | Opening (microns) | Grade |
|---|---|---|---|
| 74M 0037 | .0098" | 249 µm | Tensile Bolting Cloth |
| 90M 0035 | .0076" | 193 µm | Tensile Bolting Cloth |
| 105M 003 | .0065" | 165 µm | Tensile Bolting Cloth |
| 120M 0026 | .0058" | 147 µm | Tensile Bolting Cloth |
| 145M 0022 | .0047" | 119 µm | TBC |
| 200M 0016 | .0034" | 86 µm | TBC |
| 200M 0021 | .0029" | 74 µm | Market Grade |
| 325M 0017 | .002" | 50 µm | TBC |
Accessory: 4" diameter clear flexible polyurethane tubing (available in 1-foot increments).
