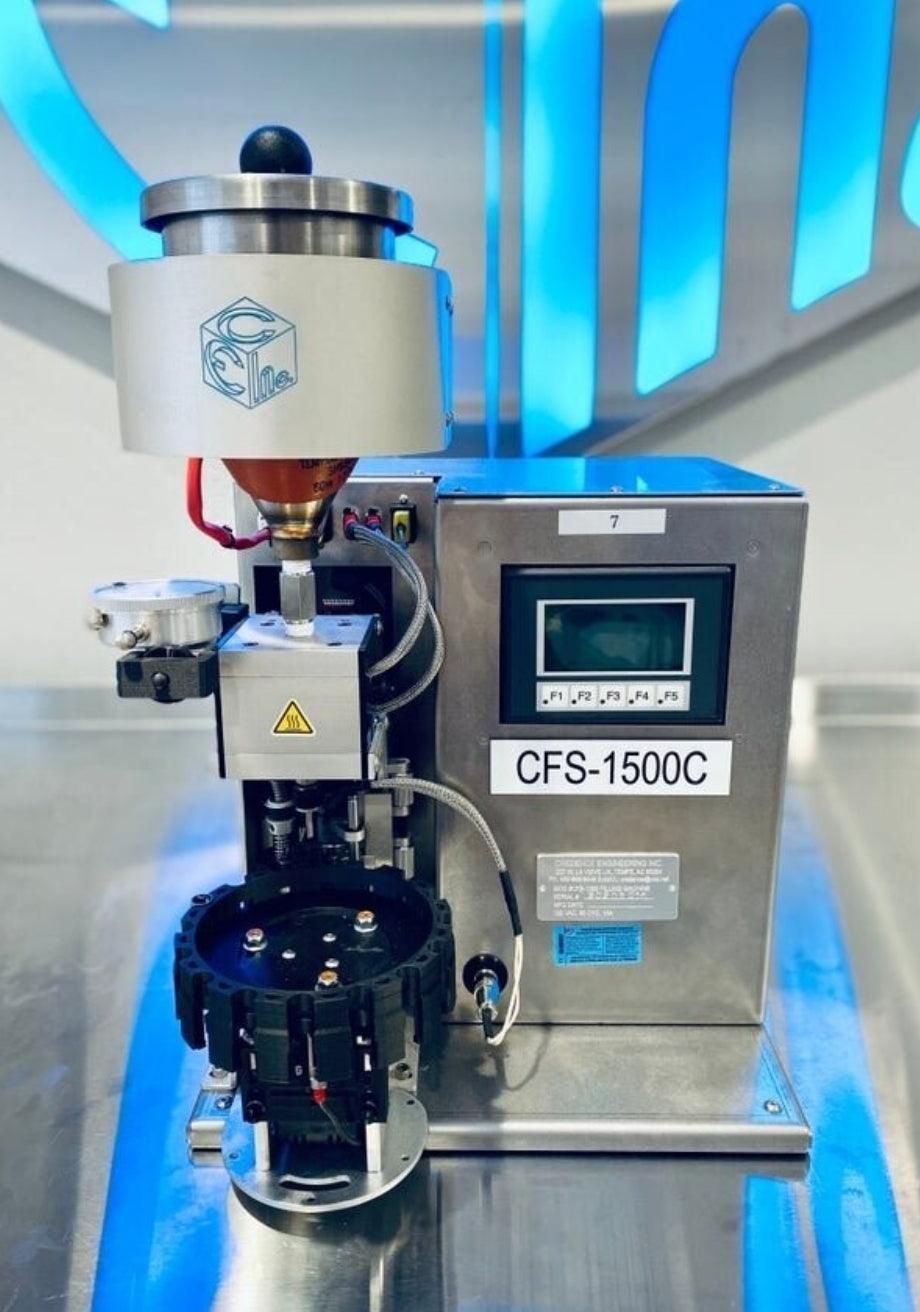

CFS-1500C Carousel Filling System

The CFS-1500C Carousel Filling System is an extension of our CFS1000 Filling Platform that utilizes our new Carousel Feeder and our new software. It eliminates the Load and Unload of the fill cycle, creating an easy to use filling system that is non-tiring and very productive. The Carousel is driven by a smart Stepper Motor. Its reflective sensor checks that carts are loaded, and if a cart is missing it will automatically skip that position and move to the next level. The Positional Braking incorporated into the elevator mechanism minimizes over-travel, maintaining a crisp and productive process. Included with the machine are a power cord, a port seal screwdriver, needle nose pliers, SAE Allen wrenches, priming tube, a digital scale with 0.001 Gr resolution, and 1 cartridge nest for scale. Additional items for purchase with the machine are a spare parts kit, custom nests for various devices, special needles, and a service agreement.

• Oils it can deliver: All Types, Distillate, CO2, CBD, CO2 Infused, etc.
• Devices it can Fill: All “Top Fill” Types of Cartridges, Pens, Disposables, Pods, Syringes, etc.
• Delivery Volume Range: Unlimited. Settable by Pump Head Angle Adjustment and number of pump revolutions.
• Throughput Potential: Up to 2,000 half-gram devices per hour
• Vessel Volume 843 grams (Larger Vessel Available)
• Filling Accuracy: +/- 1%.
• Power Requirements: 110V AC 10A
• Change-Over time between Lots: As little as 2 Minutes
• Change-Over time between Devices: As little as 15 Minutes
• Cleanout: Ethanol
• Temperature Range of Vessel: Ambient to 100C (Adjustable in 1 degree Increments)
• Pump Temperature Range: Ambient to 100C (Adjustable in 1 degree Increments)
• Needle Heater Temperature 65-80C (Unadjustable)
• Shipping Weight 30 lbs.
