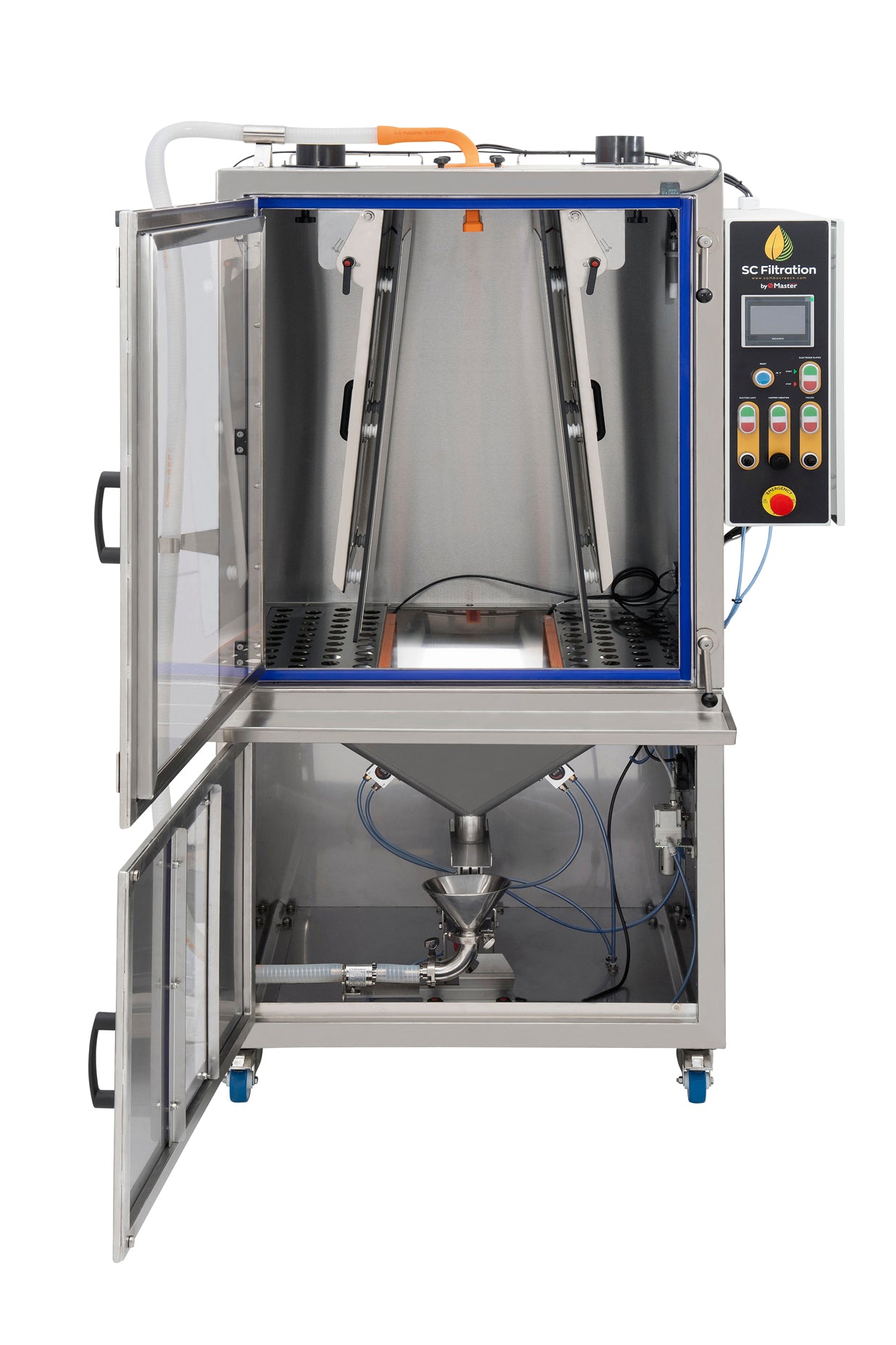

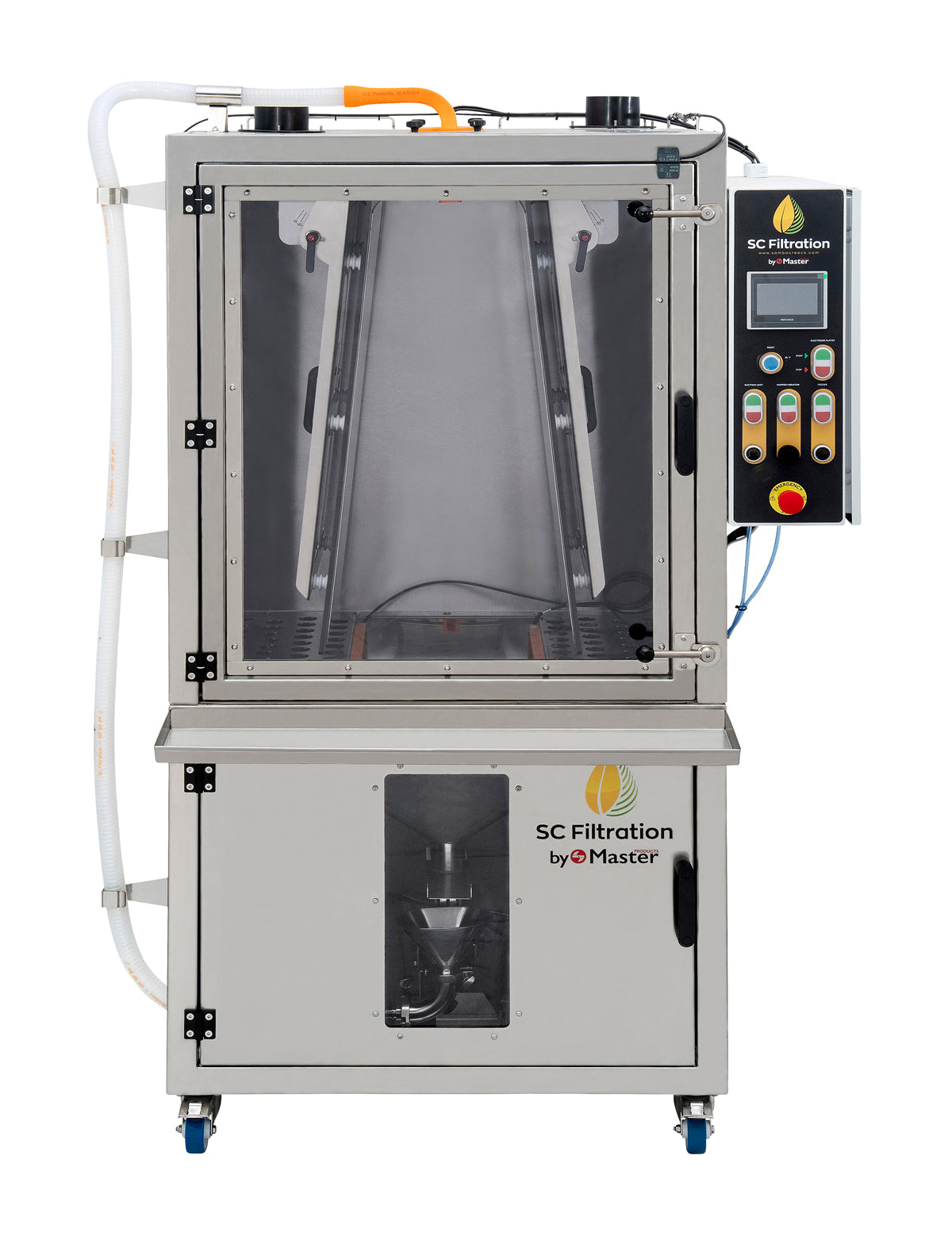

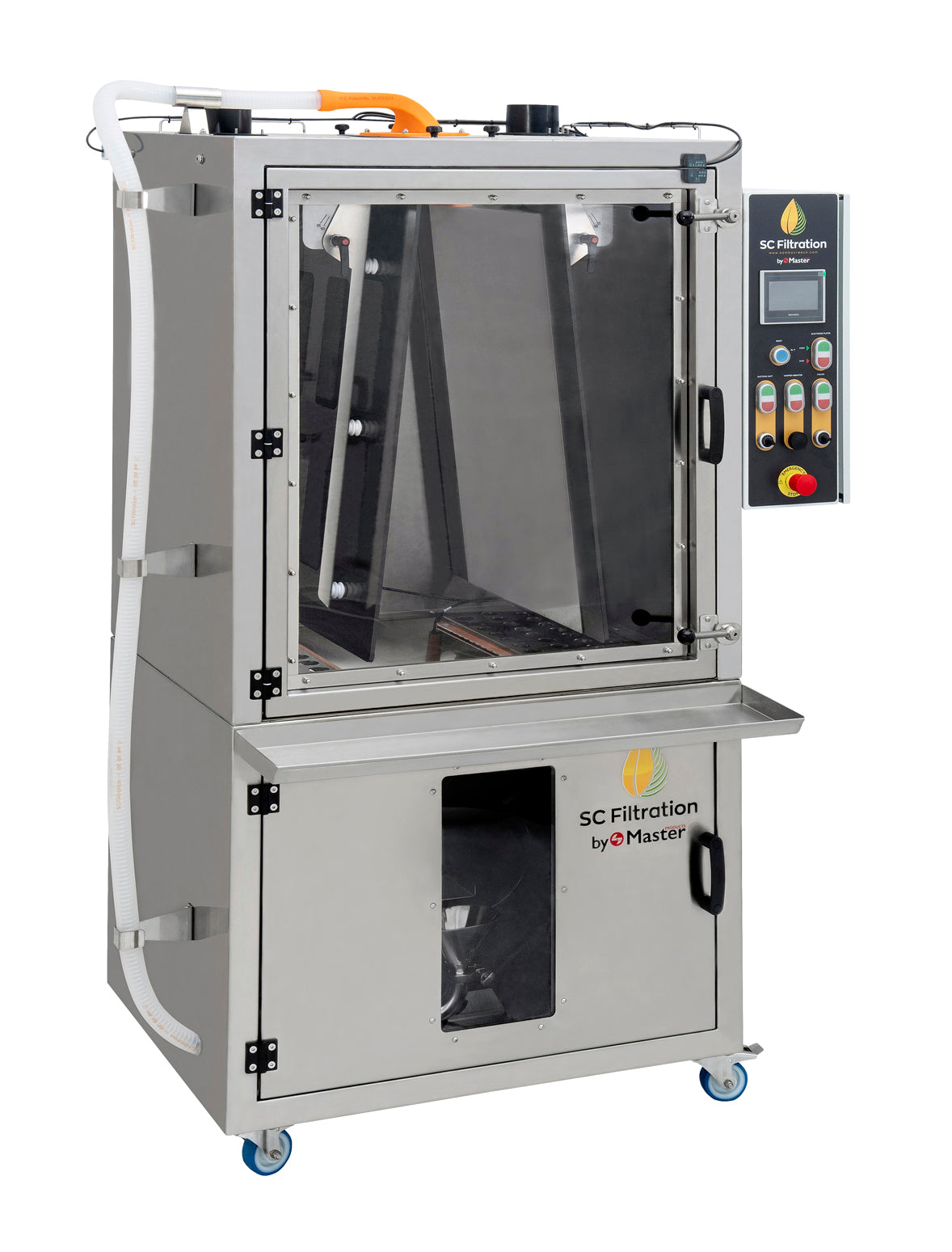

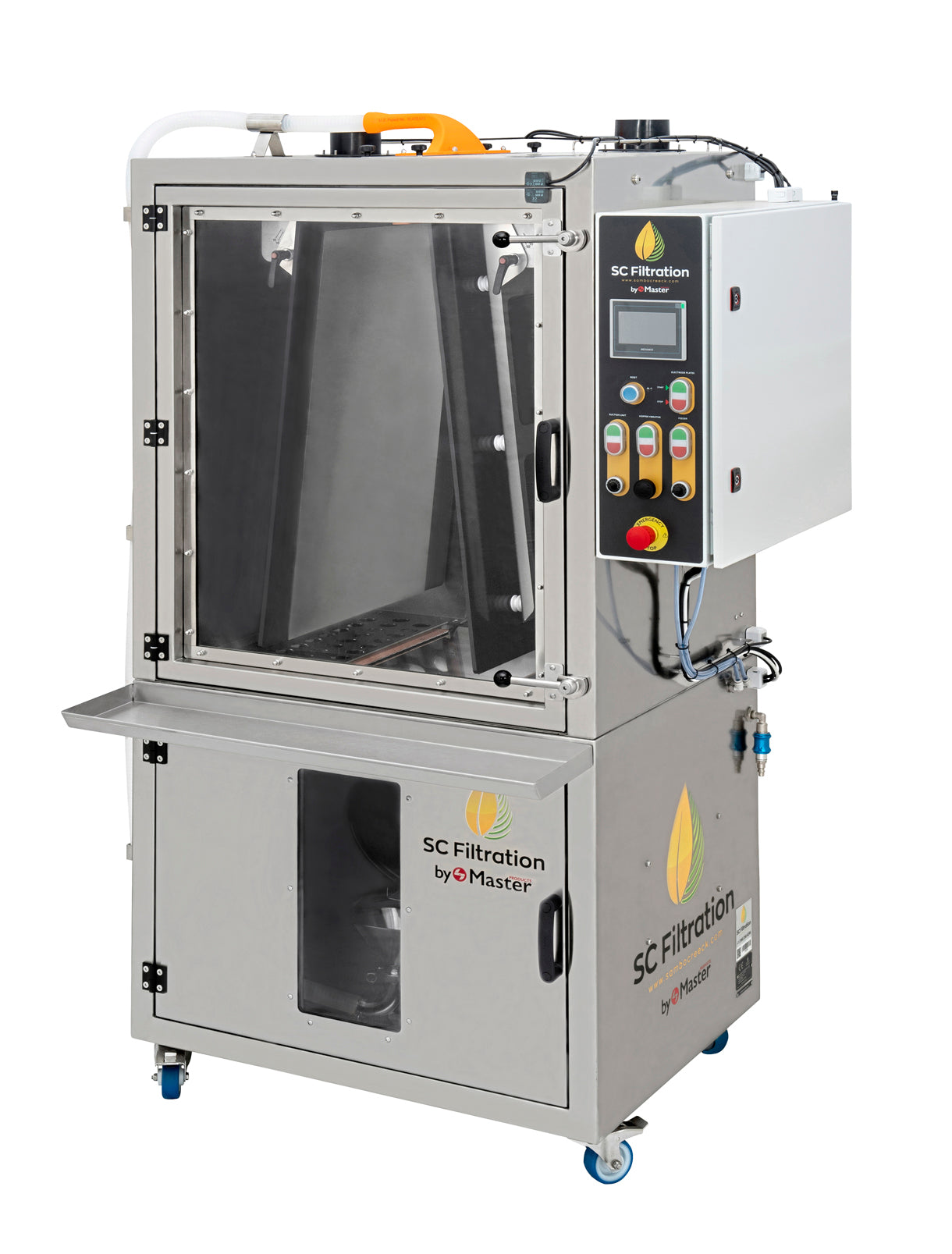

Electrostatic Separator V2

Static electricity is used to separate trichome heads from contaminants such as stalks and other contaminants from powdered biomass.

Schedule a call to discuss. Click here.

What it does well:

Isolates Trichome Heads from contaminants such as plant particles, dirt, pistils and trichome stalks.

Advantages:

• Spent biomass can be reprocessed via solvent extraction.
• No chemicals or inputs used. Only compressed air and electricity.

• Semi automated system.
• Low labor requirements.
• Low power consumption.
• Small footprint.
• Does not require highly specialized area or environment.
• Method may be eligible for energy credits in some jurisdictions.

Differences from V1.x

• Food Grade Stainless Steel Construction

• Advanced Dust Management System
• Certified German-Made Power Supplies
• Keyence Air Flow Sensor and Regulator
• Integrated Control Panel
• Integrated Safety Sensors
• Advanced Anti-Clumping Static Discharge Electrodes
• Anti Clog - Vibrating Hoppers
• Higher Capacity Device

Optional Features:

• Conveyor Belt for continuous collection

• EUGMP/cGMP Compliance Package

Specifications:

• Stainless Steel Construction
• 100-230VAC 50-60hz 5 Amps
• Dry Compressed air required (Air Compressor Not Included). 8 CFM @ 100 PSI
• Weight: 820 Lbs
• Dimensions: 56" x 15" x 65"
• Processing Capacity: 400-2,000g finished product per hour
• Power Supplies Certified UK CA, CE, GS, NRTL, UL
• Patent Pending: Unauthorized use of this product may result in legal action upon patent issuance.
